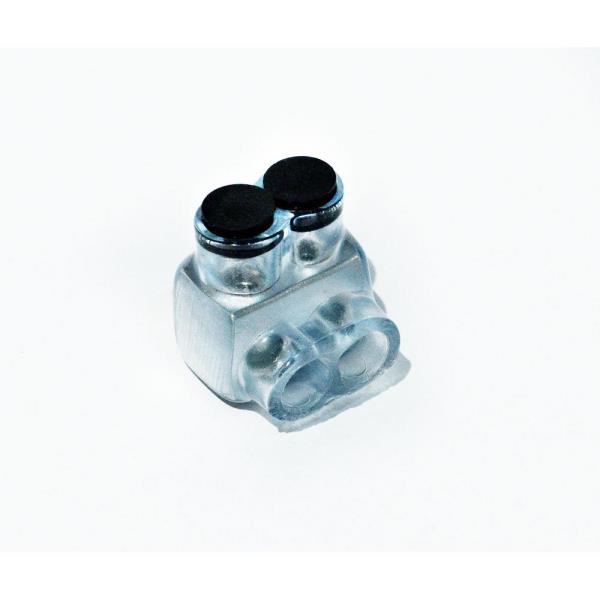

Vision Tap 4 - 14 AWG Insulated Tap Connector Single-Sided Entry

Vision Tap 4 - 14 AWG Insulated Tap Connector Single-Sided Entry

The IT-series 2-port Polaris Vision Tap series have wire entry ports on 1-side of the connector. Expanded wire range of 4-14AWG. Our transparent connectors allow a clear view of conductor placement, the lowest resistance and the most secure connection. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable plugs to close the entry port not being utilized. Not recommend for fine-stranded, flexible wire (see Polaris Grey series).

Highlights

  • Smooth exterior finish and rounded corners provide a more comfortable grip for maximum torque
  • Removable plugs ensure secure entry port closure while preventing debris from entering connector
  • Prefilled with oxide inhibitor to prevent corrosion and provide and low-contact resistance connection
  • Abrasion and chemical resistant
  • Use with Class B and C conductors, Dual rated for use with copper and/or aluminum conductors in dry locations
  • Vision tap Is dual rated, parallel rated and equipment rated
  • Usable on both line and load sides of an installation
  • Will not support combustion
  • AL9CU, cold temperature rated to minus 45°C, rated 600-Volt, 90°C

Dimensions

Connector Depth (in.)

1.12

Connector Height (in.)

1.38

Connector Width (in.)

1.18

Details

Color Family

Clear

Maximum Wire Gauge

4

Minimum Wire Gauge

14

Package Quantity

1
