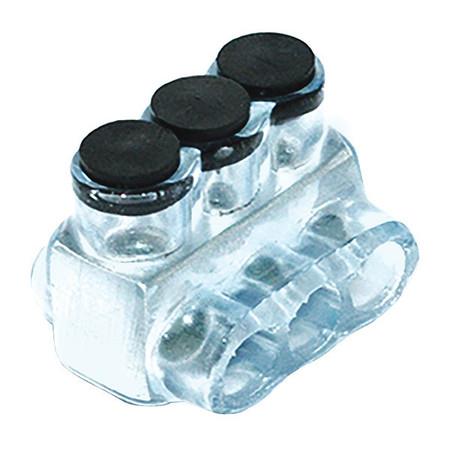

Vision Tap 4 - 14 AWG Insulated Multi-Tap Connector 3-Port Single-Sided Entry
Vision Tap 4 - 14 AWG Insulated Multi-Tap Connector 3-Port Single-Sided Entry
Regular price
$19.99 USD
Regular price
$31.52 USD
Sale price
$19.99 USD
Unit price
/
per
Tax included.
Couldn't load pickup availability
About This Product
The IPL 3-port Polaris Vision Tap series have wire entry ports on 1-side of the connector. Expanded wire range of 4-14AWG. Our transparent connectors allow a clear view of conductor placement, the lowest resistance and the most secure connection. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable plugs to close the entry port not being utilized. Not recommend for fine-stranded, flexible wire (see Polaris Grey series).
Highlights
- Smooth exterior finish and rounded corners provide a more comfortable grip for maximum torque
- Removable plugs ensure secure entry port closure while preventing debris from entering connector
- Prefilled with oxide inhibitor to prevent corrosion and provide and low-contact resistance connection
- Abrasion and chemical resistant
- Use with Class B and C conductors, Dual rated for use with copper and/or aluminum conductors in dry locations
- Vision tap Is dual rated, parallel rated and equipment rated
- Usable on both line and load sides of an installation
- Will not support combustion
- AL9CU, cold temperature rated to minus 45°C, rated 600-Volt, 90°C
Dimensions
|
Connector Depth (in.) |
1.55 |
|---|---|
|
Connector Height (in.) |
1.375 |
|
Connector Width (in.) |
1.188 |
Details
|
Color Family |
Clear |
|---|---|
|
Maximum Wire Gauge |
4 |
|
Minimum Wire Gauge |
14 |
|
Package Quantity |
1 |
|
Returnable |
30-Day |
