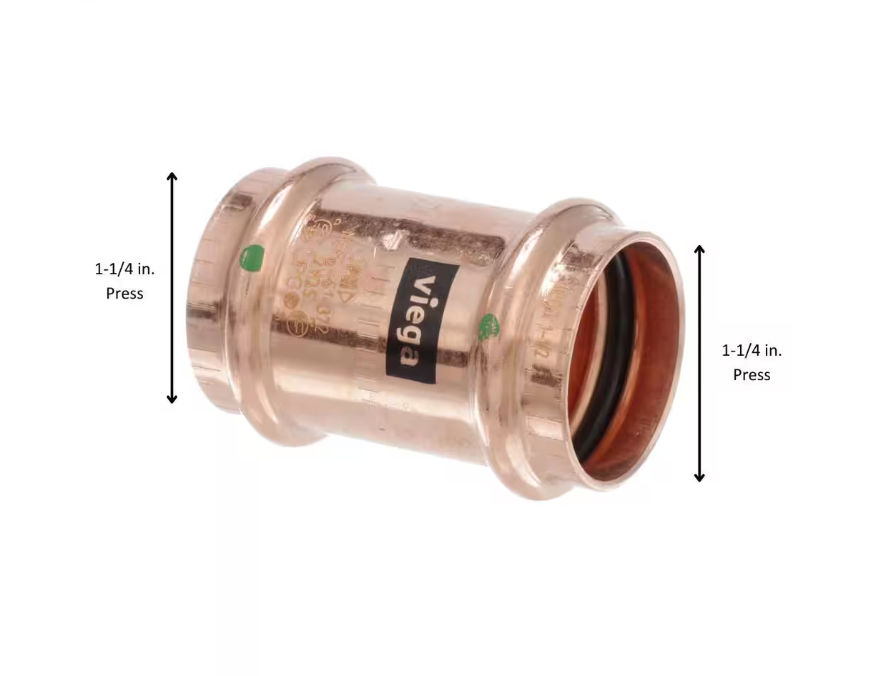

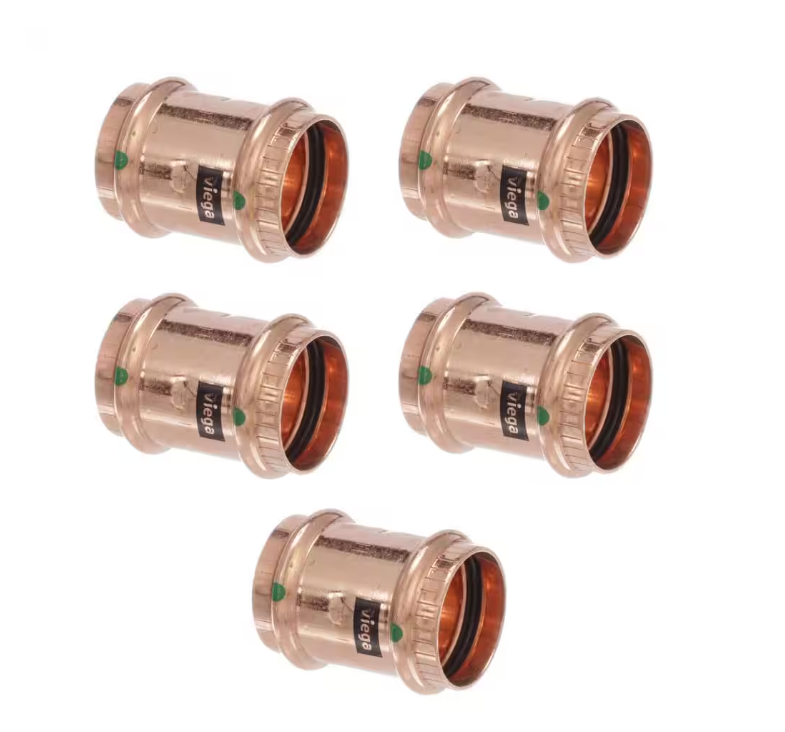

Viega ProPress 1-1/4 in. Press Copper Coupling with Stop (5-Pack)
Viega ProPress 1-1/4 in. Press Copper Coupling with Stop (5-Pack)
Couldn't load pickup availability
About This Product

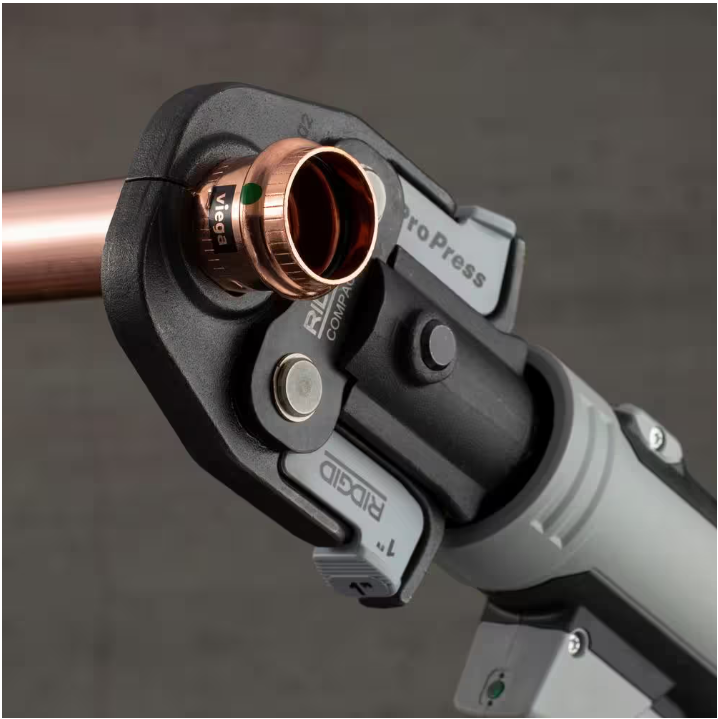

Use the Viega ProPress 1-1/4 in. Coupling to make secure extensions and repairs of ASTM B88 and B75 copper tubing. This coupling features an internal stop indentation to stop pipe halfway through the fitting when inserted. Thanks to its easy press connections, installing the coupling is quick and efficient. Unlike traditional pipe fittings, there’s no need for calibration, flame or heavy equipment. Instead, Viega ProPress couplings install in just three easy steps: cut the copper tube to length and remove any burrs or imperfections, measure and mark the fitting depth, and use a press tool to connect the Viega ProPress coupling for a secure connection. smart connect technology identifies unpressed fittings during pressure testing to ensure proper connections the first time and eliminate callbacks. Approved to the most codes and standards of any other copper press fitting system (IPC, UPC and NSF included), and with more than 400 different fitting configurations to suit virtually any type of plumbing or HVAC job, Viega ProPress pipe fittings are the top choice of professionals around the globe.
Highlights
- Viega smart connect makes secure connection in less than 7-seconds
- Minimizes system downtime by allowing for wet connection
- Fast and easy to use
- No flame, solder, flux or heavy equipment needed
- Helps installers easily identify unpressed connections during pressure testing
- Lead free
Dimensions
Double Fitting Size |
1-1/4" x 1-1/4" |
---|---|
Fitting 1 size |
1-1/4" |
Fitting 2 size |
1-1/4" |
Fitting Size Dimensions |
1-1/4" x 1-1/4" |
Product Length (in.) |
1.76 in |
Single Fitting Size |
1-1/4" |
Details
Application |
Potable Water |
---|---|
Color Family |
Copper |
Color/Finish |
Copper |
Compatible Pipe Material |
Copper |
Connection 1 |
P |
Connection 2 |
P |
Connectivity |
Press |
Copper Fitting Manufacturing Process |
Machined |
Features |
Lead Free |
Fitting or Connector Type |
Coupling |
Fitting/ Connector Collection |
Copper |
Material |
Copper |
Maximum working pressure (psi) |
200 |
Maximum Working Temperature (F) |
250 |
Pack Size |
5 |
Pipe or Fitting Product Type |
Fittings & Connectors |
Product Weight (lb.) |
0.216 lb |
Reducing Fitting |
No |
Returnable |
30-Day |
