Viega ManaBloc 1/2 in. x 14 port Polymer Distribution Manifold (6 hot/8 cold)
Viega ManaBloc 1/2 in. x 14 port Polymer Distribution Manifold (6 hot/8 cold)
Couldn't load pickup availability
About This Product

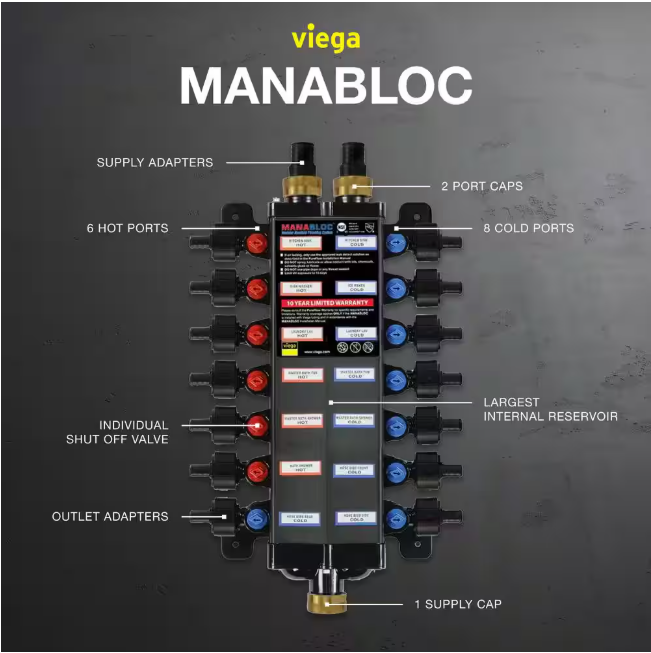

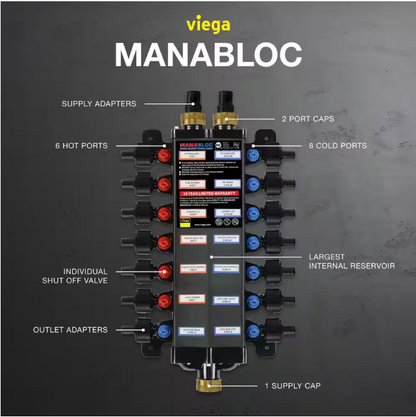

The Viega ManaBloc is engineered to be a complete water distribution system, allowing you control over every supply line from 1 central location. It also allows for multiple fixtures to be used simultaneously without dramatic drops in pressure or temperature. Viega's ManaBloc system will ultimately reduce the number of fittings (and therefore, potential leak points) behind the wall. ManaBloc features the industry's largest internal reservoir, allowing for smaller temperature and pressure changes than manifold and branch and tee installations. On top of that, Viega ManaBlocs are designed to resist scaling and corrosion and feature a 10-year limited warranty.
Highlights
- 6 hot, 8 cold ports
- Reduce number of fittings and potential leak points behind the wall
- Feature the industry's largest internal reservoir, allowing for smaller temperature and pressure changes
- Has a material composition of polysulfone
- Outlet port flow capacity of 4 GPM/port
- Main bore flow capacity of 31 GPM/side
Dimensions
Inlet Diameter (In.) |
3/4 |
---|---|
Outlet Diameter (In.) |
1/2 |
Product Height (in.) |
2.89 in |
Product Length (in.) |
10.18 in |
Product Width (in.) |
15.82 in |
Details
Application |
Potable Water |
---|---|
Compatible Pipe Material |
PEX |
Connection |
Barb |
Features |
Lead Free |
Indoor/Outdoor |
Indoor |
Material |
Polysulfone (PLS) Plastic |
Maximum Pressure (PSI) |
100 PSI |
Maximum Working Temperature (F) |
180 |
Pack Size |
1 |
Product Weight (lb.) |
5.024 lb |
Returnable |
30-Day |
