SharkBite Push-to-Connect Ice Maker Installation Kit

SharkBite Push-to-Connect Ice Maker Installation Kit

Regular price $36.49 USD
Regular price $39.39 USD Sale price $36.49 USD
Sale Sold out
Tax included.

About This Product

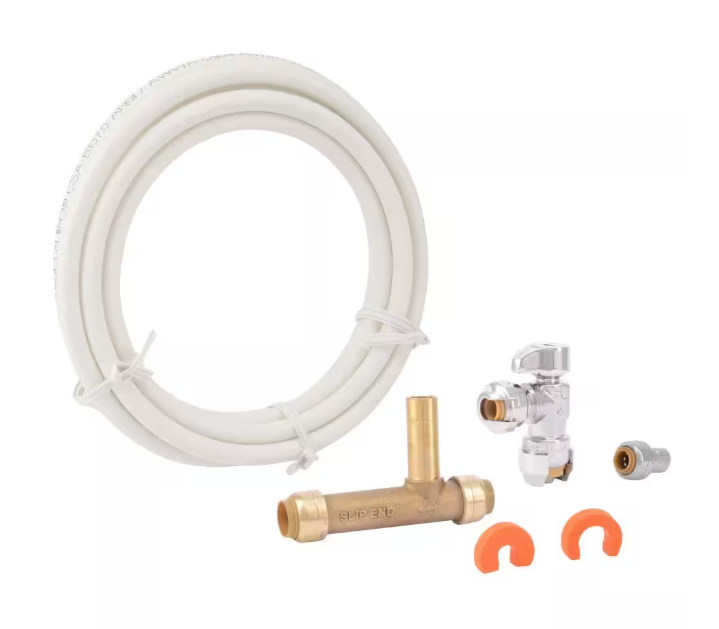

The SharkBite Ice Maker Installation Kit has everything you need to install the water supply to your Ice maker. The kit includes 1 SharkBite 1/2 in. Service Slip Tee, one 1/2 in. x 1/4 in. (3/8 in. O.D.) Push-to-Connect Angle Stop Valve, a 10 ft. coil of 1/4 in. PEX Pipe, one 1/4 in. (3/8 in. O.D.) SharkBite x 1/4 in. O.D. Compression Connector, and a 1/2 in. and 1/4 in. disconnect clip to remove the pipe from the fitting if needed. The SharkBite Service Slip Tee allows you to remove up to 2 in. of your existing copper or CPVC line and add an angle supply stop valve. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. The included 10 ft. PEX coil connects to the push-to-connect angle stop valve 1/4 in. outlet and the 1/4 in. Ice maker connector which will thread onto your Ice Maker. The pipe can be cut to the exact length needed so there is no excess supply line to coil providing a clean, tangle free look.

Highlights

  • Lead free DZR brass construction for durability and reliability
  • For use with copper or CPVC pipe
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions or tools
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution
  • Corrosion resistant to improve longevity
  • Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
  • Meets all UPC, IPC, and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility
  • Rated to 200°F and 200 psi

Dimensions

Inlet Diameter (In.)

1/2

Outlet Diameter (In.)

3/4

Product Depth (in.)

2.5 in

Product Height (in.)

2.5 in

Product Length (in.)

123.5 in

Product Width (in.)

0.75 in

Details

Application

Potable Water

Compatible Pipe Material

Multi-Purpose

Connection

PTC x PTC

Features

Removable

Indoor/Outdoor

Indoor

Material

Brass

Maximum Pressure (PSI)

200 PSI

Maximum Working Temperature (F)

200

Pack Size

1

Product Weight (lb.)

0.921 lb

Returnable

30-Day

Valve Type

Ice Maker
