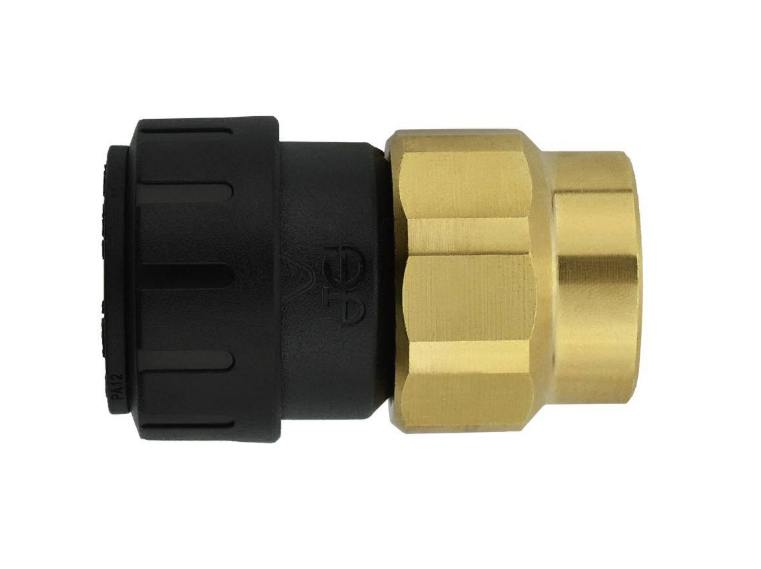

SharkBite ProLock 1/2 in. x 1/2 in. Push-to-Connect Plastic FIP Female Adapter Fitting
SharkBite ProLock 1/2 in. x 1/2 in. Push-to-Connect Plastic FIP Female Adapter Fitting
Couldn't load pickup availability
About This Product

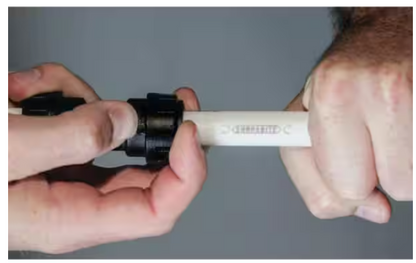

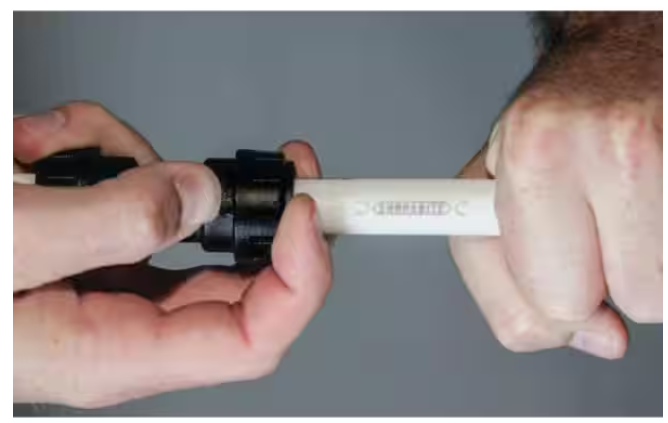

SharkBite ProLock fittings are a versatile and innovative full-flow Push-to-Connect fitting, desinged and engineered for use with PEX, copper, CPVC, PE-RT & HDPE Pipe. The intuitive design makes for one of the simplest and most dependable fittings on the market. No tools are required to make a connection. They use a collet with stainless steel teeth that grips the pipe when fully inserted and an EPDM O-Ring to provide a permanent, leak-proof seal. The Twist-to-lock feature ensures maximum security. When twisted into place with indicator arrows aligned, the locking cap locks the pipe in place. Removing the fitting is even easier with no special tools required, simply twist the cap counterclockwise to unlock then depress collet against the fitting to remove from pipe. ProLock fittings are suitable for hot and cold potable water and hydronic heating applications. Code approved for behind-the-wall installations. 25-year SharkBite System warranty when used with SharkBite pipe.
Highlights
- Use with PEX, copper, CPVC, PE-RT & HDPE pipe
- Full flow water output system
- Twist-to-lock technology provides added security without need for tools
- Removable fitting, reduces risk of installation errors

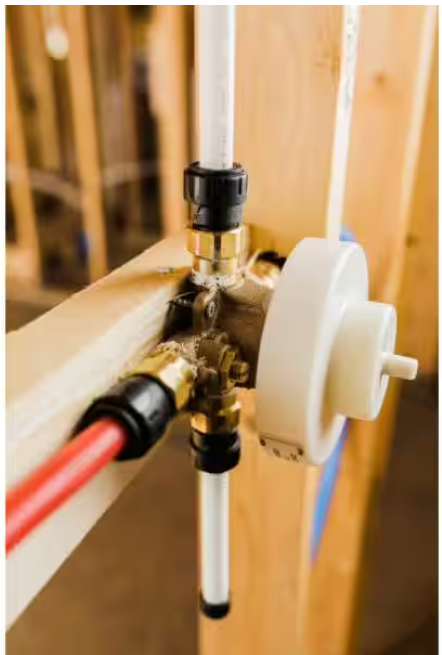

- Code approved for behind-wall use
- Suitable for hot and cold potable water and hydronic heating applications
- Fitting can be rotated on pipe after installation making it easier to work in tight spaces
- Constructed from durable state of the art polymers
Dimensions

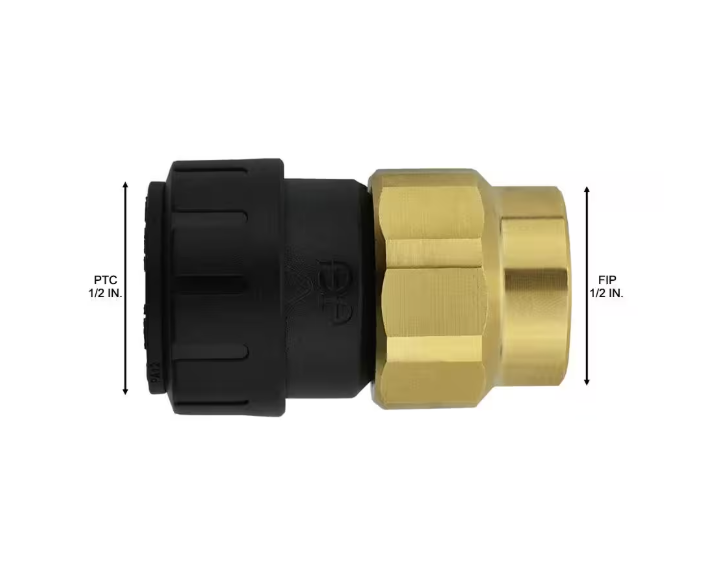

Double Fitting Size |
1/2" x 1/2" |
---|---|
Fitting 1 size |
1/2" |
Fitting 2 size |
1/2" |
Fitting Size Dimensions |
1/2" x 1/2" |
Product Length (in.) |
1.25 in |
Single Fitting Size |
1/2" |
Details
Application |
Potable Water |
---|---|
Color Family |
Black |
Color/Finish |
Black |
Compatible Pipe Material |
Multi-Purpose |
Connection 1 |
PTC |
Connection 2 |
FIP |
Connectivity |
Push Fit |
Features |
Lead Free, Removable |
Fitting or Connector Type |
Adapter |
Fitting/ Connector Collection |
PEX |
Material |
Plastic |
Maximum working pressure (psi) |
160 |
Maximum Working Temperature (F) |
180 |
Pack Size |
1 |
PEX Fitting Type |
Push |
PEX Type |
A/B/C |
Pipe or Fitting Product Type |
Fittings & Connectors |
Product Weight (lb.) |
.119 lb |
Reducing Fitting |
No |
Returnable |
30-Day |
