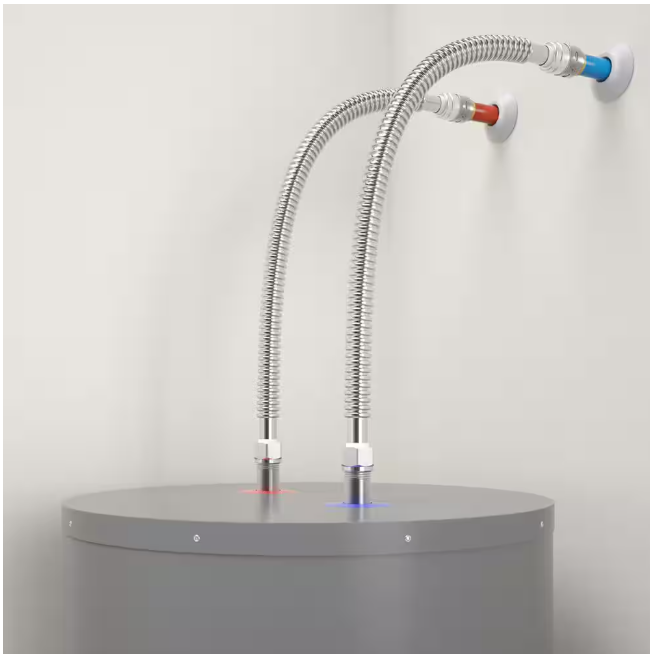

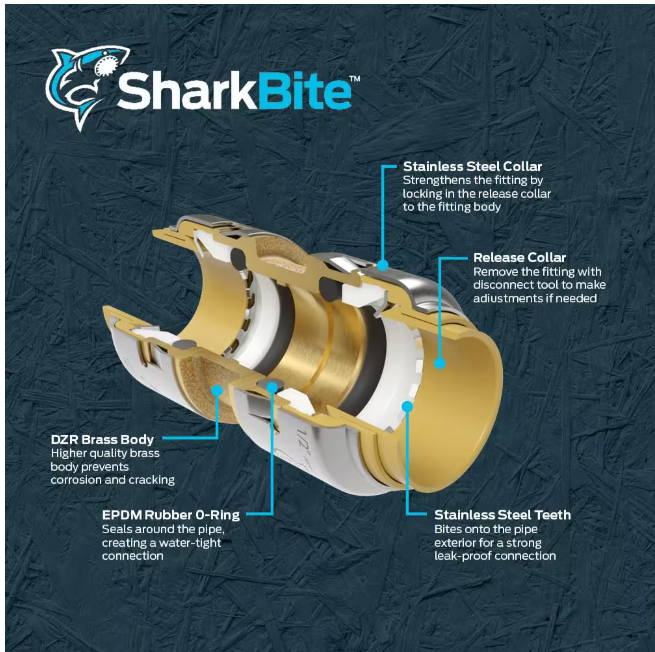

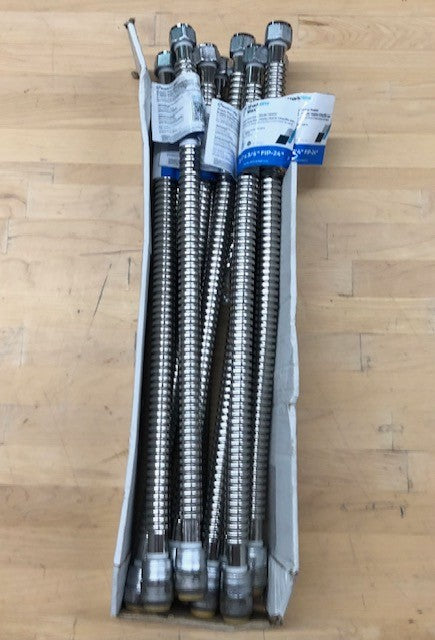

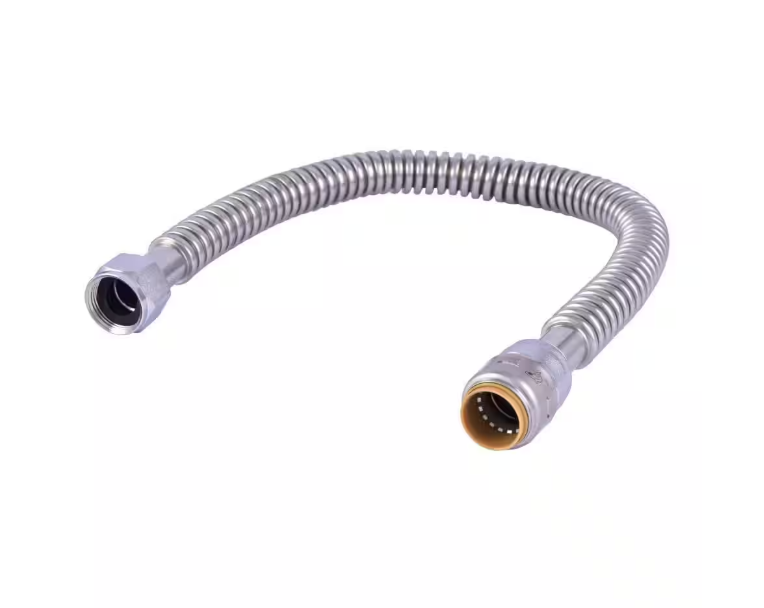

Pack of 10 - SharkBite Max flexible water heater connectors are the fastest and easiest way to connect your water heater to existing pipes in your home. A newly designed stainless steel collet retainer delivers additional strength and durability and provides a 200 psi pressure rating. SharkBite Max connectors do not require a PEX tube liner, and a re-engineered body allows you to insert the pipe using less force and greater ease. No soldering, clamps, unions, glue, or special tools required. After inserting to pipe, stainless steel teeth bite down and grip the pipe tightly while a specially formulated O-ring compresses around the pipe to create a watertight seal. The durable corrugated stainless-steel hose is a great option for areas that require hard piping but is still flexible enough to connect to water lines in tight spaces that don't line up. Available in additional lengths (12 in. to 24 in.) and with integrated ball valve shut off.
Highlights
Compatible with PEX, copper, CPVC PE-RT, or HDPE pipe
Approved for electric and gas water heaters with flue vent
Requires no special tools to install on hot or cold-water lines
Can be installed on wet or dry lines pressure tested immediately
Rotatable after installation and removable
PEX tube liner not required
Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
Low-lead DZR corrosion-resistant brass body
Rated to 180°F and 200 psi
Code approved, IAPMO Listed
Dimensions
Product Depth (in.)
24.02 in
Product Height (in.)
1.29 in
Product Length (in.)
24 in
Product Width (in.)
1.29 in
Details
Application
Potable Water
Compatible Brand/Model
Universal
Finish Family
Silver Metallic
For Use With
Electric Tank, Electric Tankless, Gas Tank, Gas Tankless
