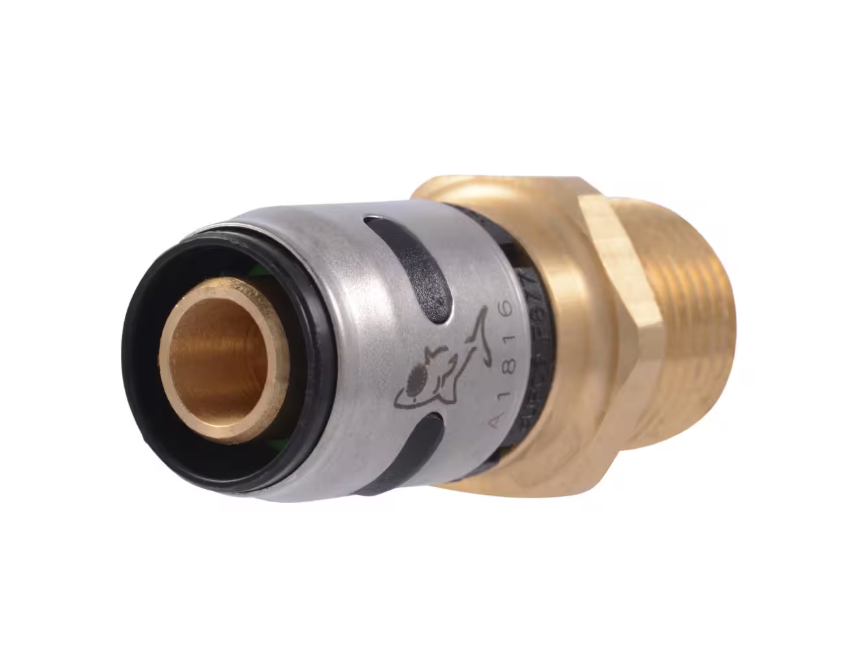

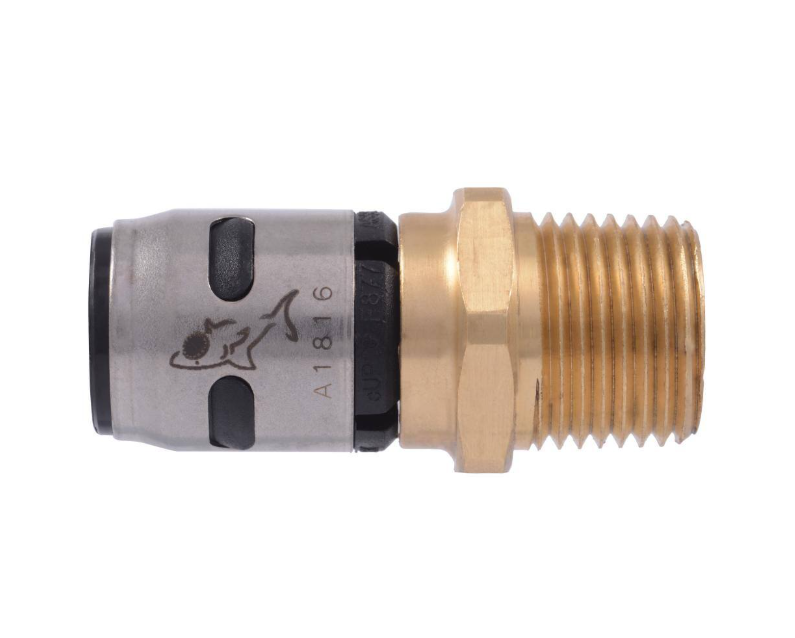

SharkBite 1/2 in. Push-to-Connect EVOPEX x MIP Brass Adapter Fitting (6-Pack)
SharkBite 1/2 in. Push-to-Connect EVOPEX x MIP Brass Adapter Fitting (6-Pack)
Couldn't load pickup availability
About This Product

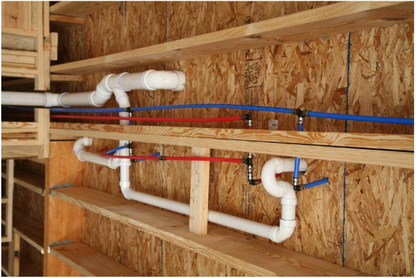

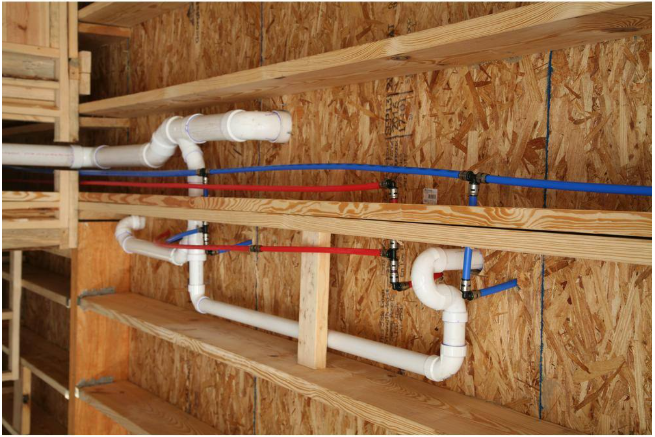

The SharkBite EvoPEX System is the first PEX ONLY push-to-connect rough-in plumbing solution designed to use without the need for additional tools and rings. It is engineered to improve efficiency and enable plumbing contractors to optimize install time with clean, leak-free installations unlike traditional crimp and expansion methods. Like traditional SharkBite Fittings, no special tools, soldering, glue or crimping to plumb an entire home, optimizing install time and efficiency. The systems ease of installation reduces the risk of install errors and potential leaks, just push onto PEX Pipe and check the green visual indicator to ensure a proper, leak-free connection. Its that simple. SharkBite EvoPEX Fittings are made from Acudel Plastic it provides toughness and chemical resistance along with excellent anti-decay stability and dimensional stability.
Highlights
- High performance polymer with great chemical and chloramine resistance
- No tools, no calibration, no rings for error proof installation
- Peace of mind you can see with visual indicator for assurance of proper fitting connection
- Easy install with minimal learning curve for new laborers
- No potential for leaks caused by nicks on the fitting exterior
- Maximum temperature: 200 degrees F/maximum pressure: 160 psi
- Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61 / meets all UPC, IPC and cUPC requirements
- No demount clip required, SharkBite EvoPEX fittings are not meant to be removed once installed
- 6-piece pack
Dimensions
Double Fitting Size |
1/2" x 1/2" |
---|---|
Fitting 1 size |
1/2" |
Fitting 2 size |
1/2" |
Fitting Size Dimensions |
1/2" x 1/2" |
Product Length (in.) |
2.122 in |
Single Fitting Size |
1/2" |
Details
Application |
Potable Water |
---|---|
Color Family |
Brass |
Color/Finish |
Brass |
Compatible Pipe Material |
PEX |
Connection 1 |
MPT |
Connection 2 |
PTC |
Connectivity |
Barb |
Features |
Lead Free |
Fitting or Connector Type |
Adapter |
Fitting/ Connector Collection |
Brass |
Material |
Plastic |
Maximum working pressure (psi) |
160 |
Maximum Working Temperature (F) |
200 |
Pack Size |
6 |
PEX Fitting Type |
Crimp |
PEX Type |
B |
Pipe or Fitting Product Type |
Fittings & Connectors |
Product Weight (lb.) |
.139 lb |
Reducing Fitting |
No |
Returnable |
30-Day |
