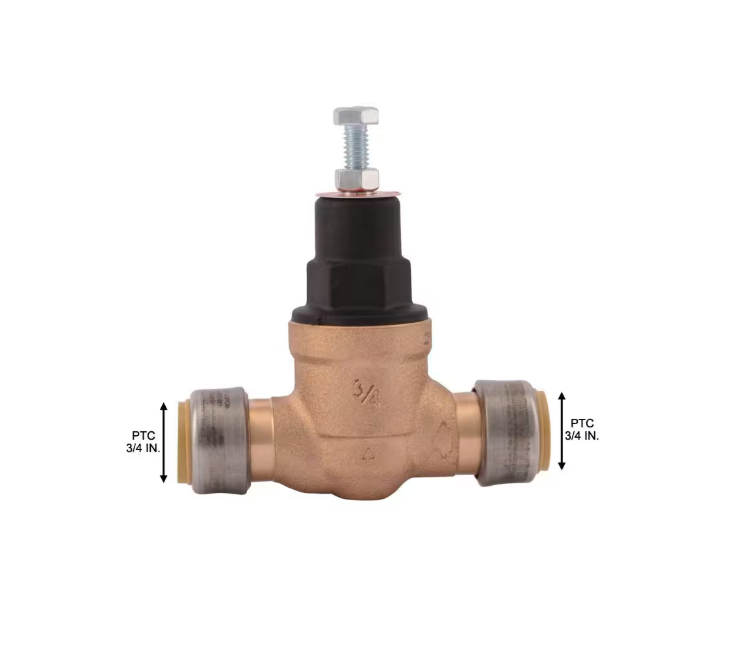

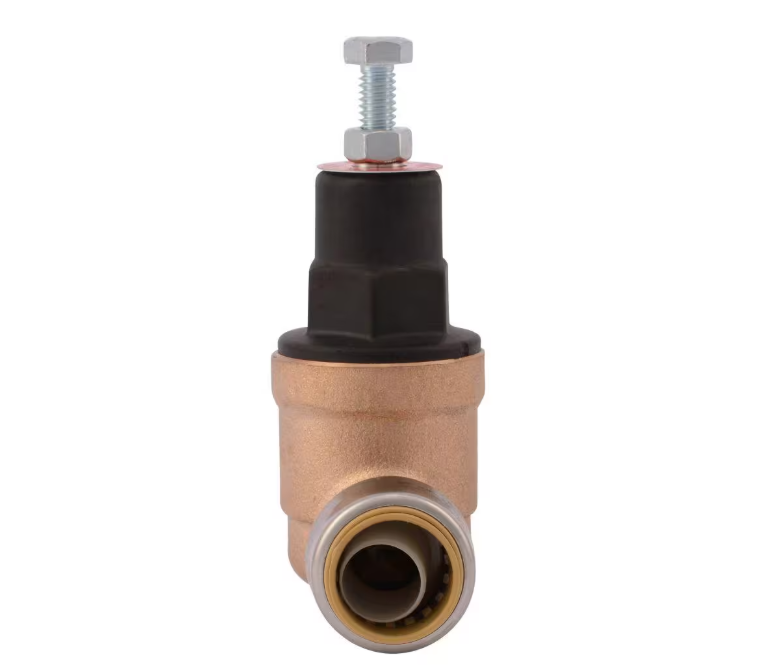

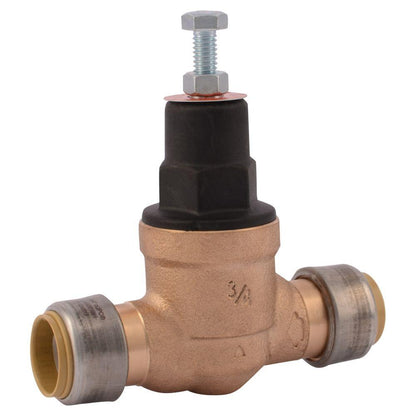

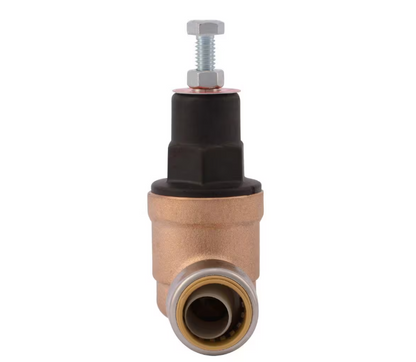

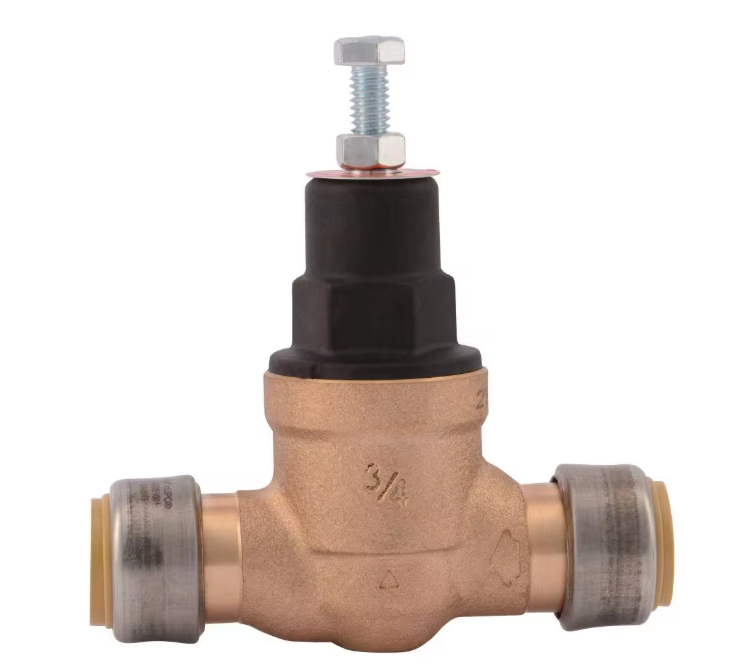

SharkBite 3/4 in. Push-to-Connect Bronze EB-45 Direct Pressure Regulator Valve

SharkBite 3/4 in. Push-to-Connect Bronze EB-45 Direct Pressure Regulator Valve

Regular price $59.28 USD
Regular price $66.82 USD Sale price $59.28 USD
Sale Sold out
Tax included.

About This Product

Cash Acme pressure regulating valves are designed to reduce incoming water pressure to a safe pressure to protect plumbing components. They also help to prevent pressure surges from entering the household from the main line. High pressure can cause damage to appliances and plumbing. A pressure regulator should be installed after the main line to help protect plumbing. The Cash Acme EB-45 is a half-cartridge based pressure reducing and regulating valve with a lead free bronze body. The valve resembles traditional regulators with a spring chamber and an adjusting screw but offers the high performance of a cartridge based valve. Fitted with the SharkBite Connection system the EB-45 can be installed using a push-to-connect connection that can be installed on any combination of Copper, CPVC, or PEX Pipe.

Highlights

  • Solid lead-free bronze construction
  • Factory set to regulate flow to a safe 45 psi, adjustable from 10 to 70 psi
  • Direct SharkBite connections allow for a push-fit connection on any combination of copper, CPVC, PEX
  • Integrated internal by-pass mechanism
  • Cartridge based design allows for quick and easy service
  • Certified to ASSE 1003 and CSA B356 and listed by ASSE and IAPMO (cUPC)
  • Meets UPC, IPC and cUPC requirements
  • Designed for use where inlet pressure does not exceed 400 psi
  • Suited for hot (up to 180) or cold water service
  • 3/4 in. Pipe Insertion Depth = 1-1/8 in.

Dimensions

Inlet Diameter (In.)

3/4

Outlet Diameter (In.)

3/4

Product Height (in.)

5.47 in

Product Length (in.)

4.375 in

Product Width (in.)

5.0 in

Details

Application

Potable Water

Compatible Pipe Material

Multi-Purpose

Connection

PTC x PTC

Features

Removable

Indoor/Outdoor

Indoor, Outdoor

Material

Bronze

Maximum Pressure (PSI)

400 PSI

Maximum Working Temperature (F)

180

Pack Size

1

Product Weight (lb.)

.99 lb

Returnable

30-Day
