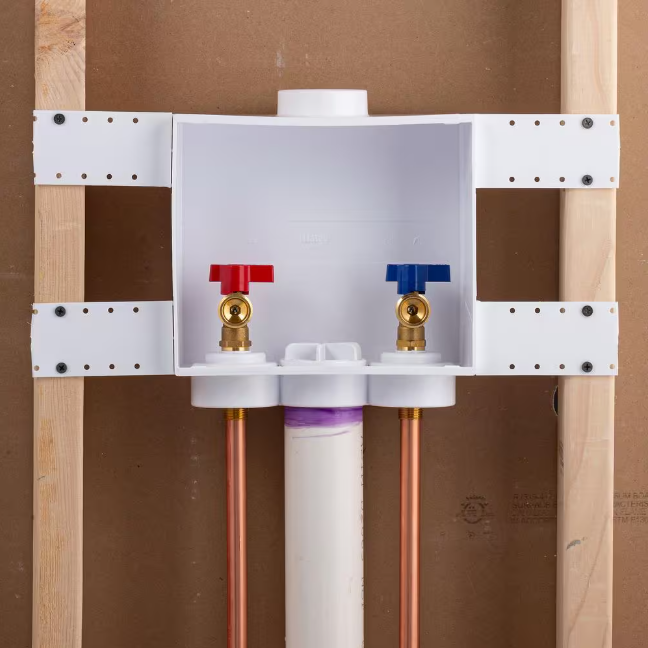

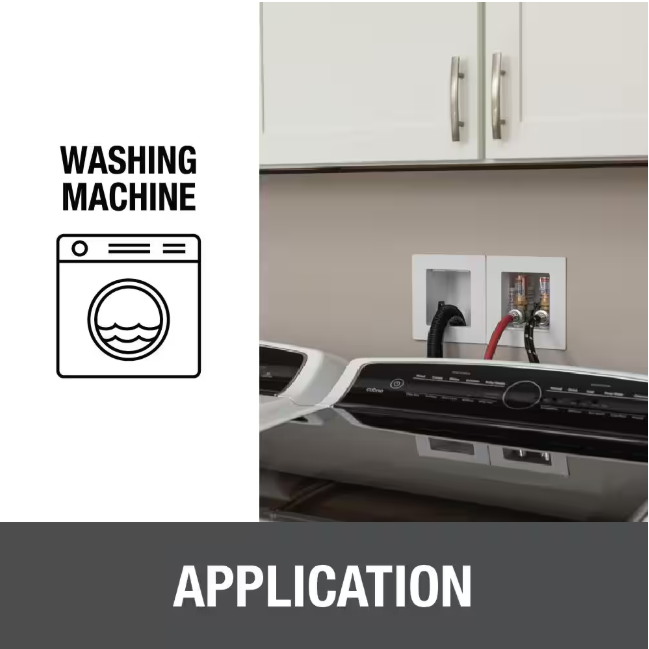

The Oatey Quadtro Washing Machine Outlet Box is made for commercial or residential applications where supply valves and waste drains are recessed into the wall. The proprietary lock and load valves enable left, right or center positioning of the drain pipe. This easy-to-install box includes all necessary support brackets to mount the water supply valves from the top or bottom. Oatey products have earned the trust of plumbing professionals for over 100 years.
Highlights
Quadtro residential and commercial washing machine outlet box
2 in. drain opening fits PVC or ABS Sch. 40 DWV pipe

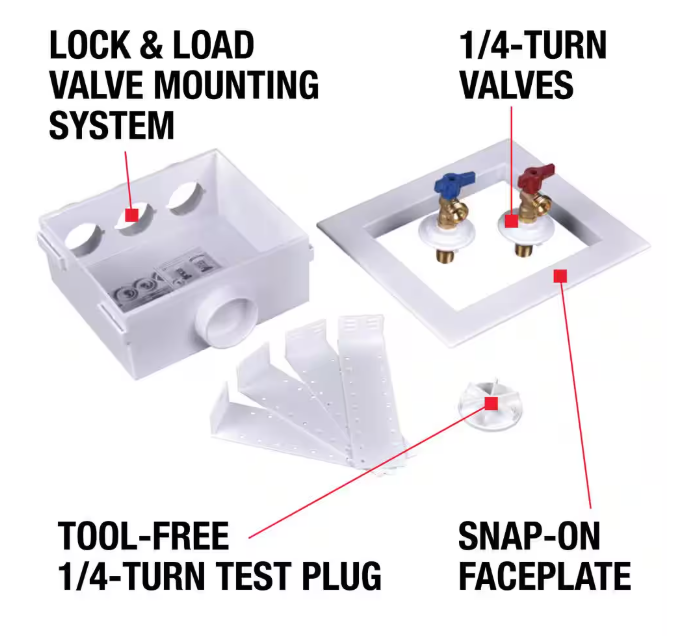

Easy-to-remove, tool-free 1/4-turn knockout
Snap-on faceplate frame accommodates up to 1 in. drywall
Box made of high impact polystyrene stands up to the roughest job site abuse
Connects to copper supply line with sweat connection

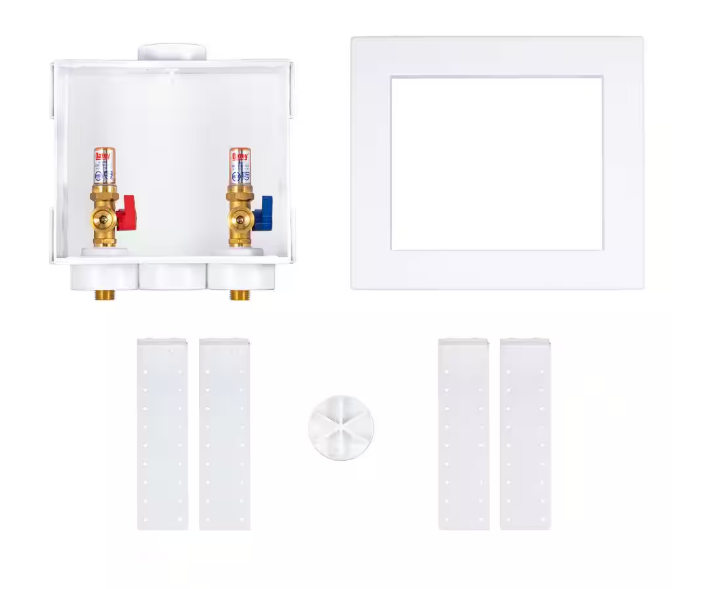

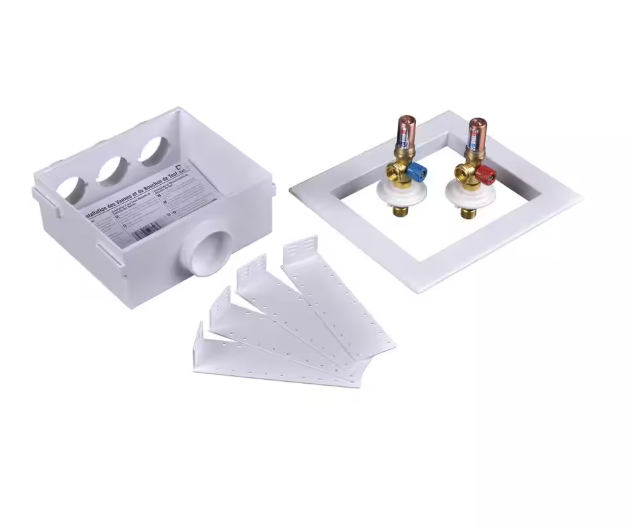

4 support brackets included for easy top or bottom valve mounting

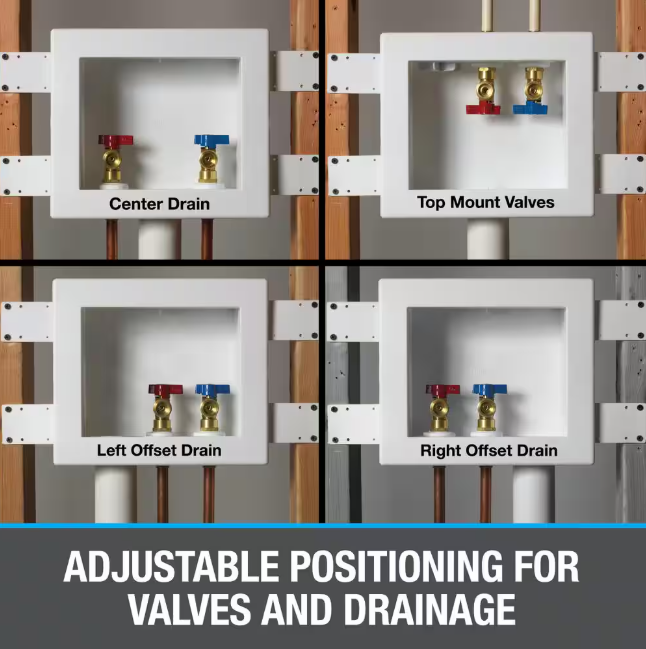

Two proprietary lock and load 1/4-turn valves enable left, right or center positioning of the drain pipe
Four openings accommodate: A hot water PEX-compatible valve, a cold water PEX-compatible valve, PVC or ABS Sch. 40 drain pipe for connection to your DWV system, and the option for top-down supply line installation

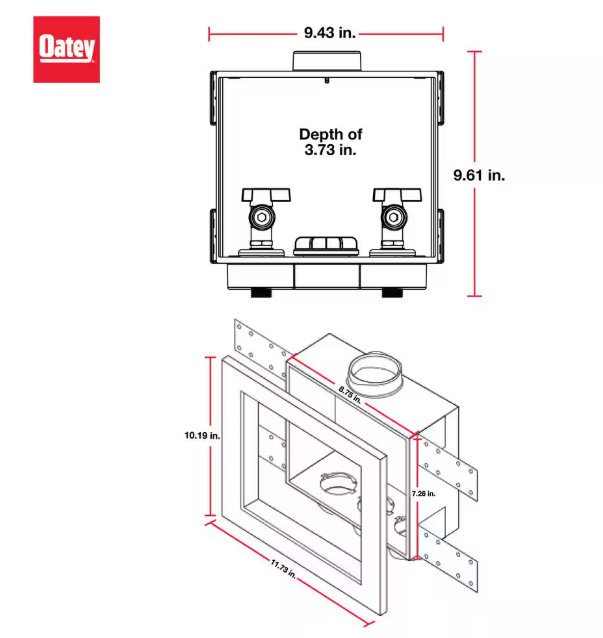

Box Dimensions: 9.43 in. W x 9.61 in. H x 3.73 in. D; Box Opening Dimensions: 8-3/4 in. W x 7.26 in. H
Faceplate Dimensions: 11.73 in. W x 10.19 in. H

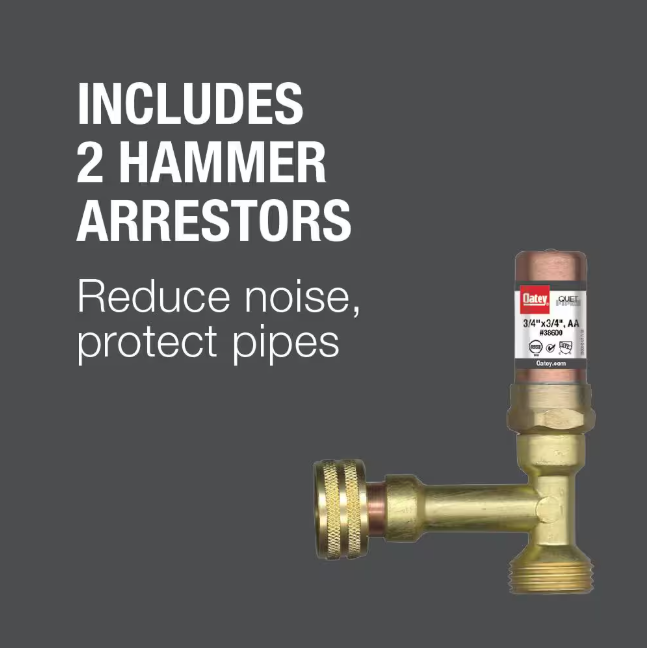

Includes 2 Oatey Quiet Pipe hammer arrestors to reduce noise and protect pipes
