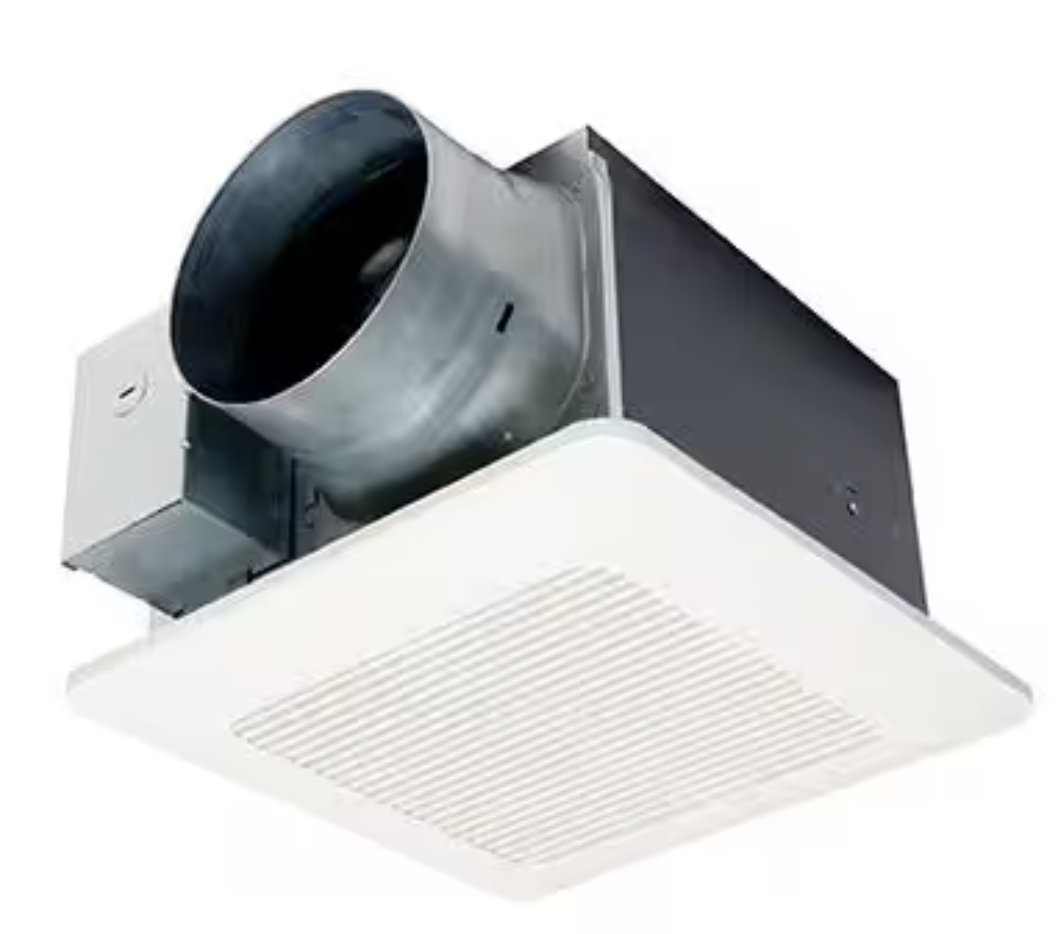

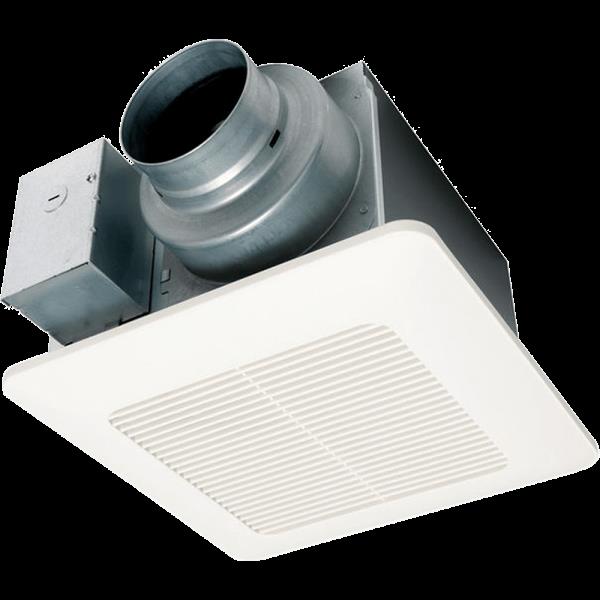

Panasonic FV-1115VQ1 WhisperCeiling DC Ventilation Fan
Panasonic FV-1115VQ1 WhisperCeiling DC Ventilation Fan
Couldn't load pickup availability
The Panasonic WhisperCeiling DC Precision Spot Ventilation Fan combines advanced technology with versatile features to deliver top-tier performance for any ventilation need. With the innovative Pick-A-Flow speed selector, you can easily choose between 110, 130, or 150 CFM for optimal airflow, while the revolutionary ECM motor with SmartFlow technology automatically adjusts speed for consistent performance. This ENERGY STAR certified fan includes a sleek, modern grille with a 10W dimmable LED light panel and <1W LED night light for efficient, warm illumination. The included Flex-Z Fast installation bracket ensures quick and flexible mounting, making it ideal for both new and retrofit installations. Awarded the 2021 Most Efficient designation, the WhisperCeiling DC offers superior energy efficiency, long-lasting durability, and a design that seamlessly blends with your home's aesthetic, meeting the latest codes and standards for effective, efficient ventilation.
Highlights

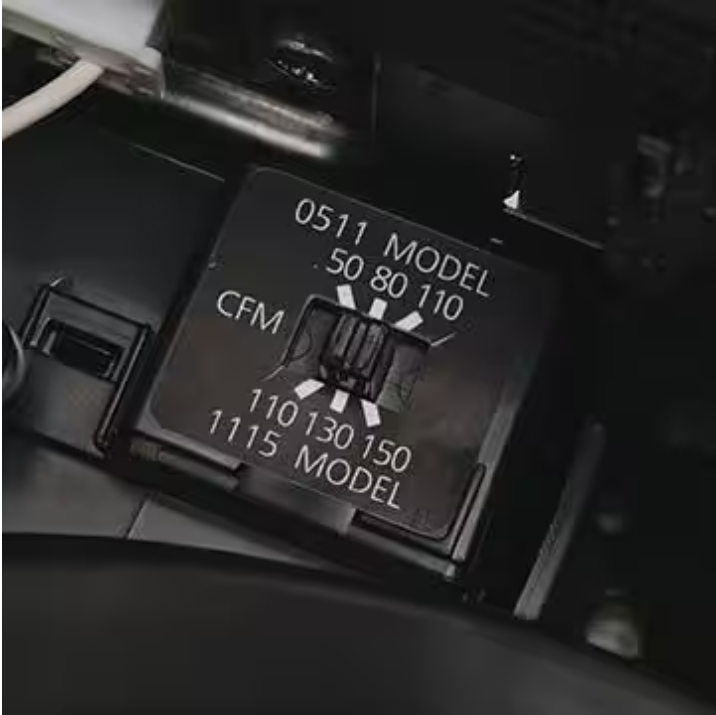

- Customizable Airflow: Pick-A-Flow Speed Selector offers three settings (110, 130, 150 CFM) for tailored ventilation.
- Advanced ECM Motor: SmartFlow technology ensures optimal CFM output and adjusts for static pressure to maintain performance.

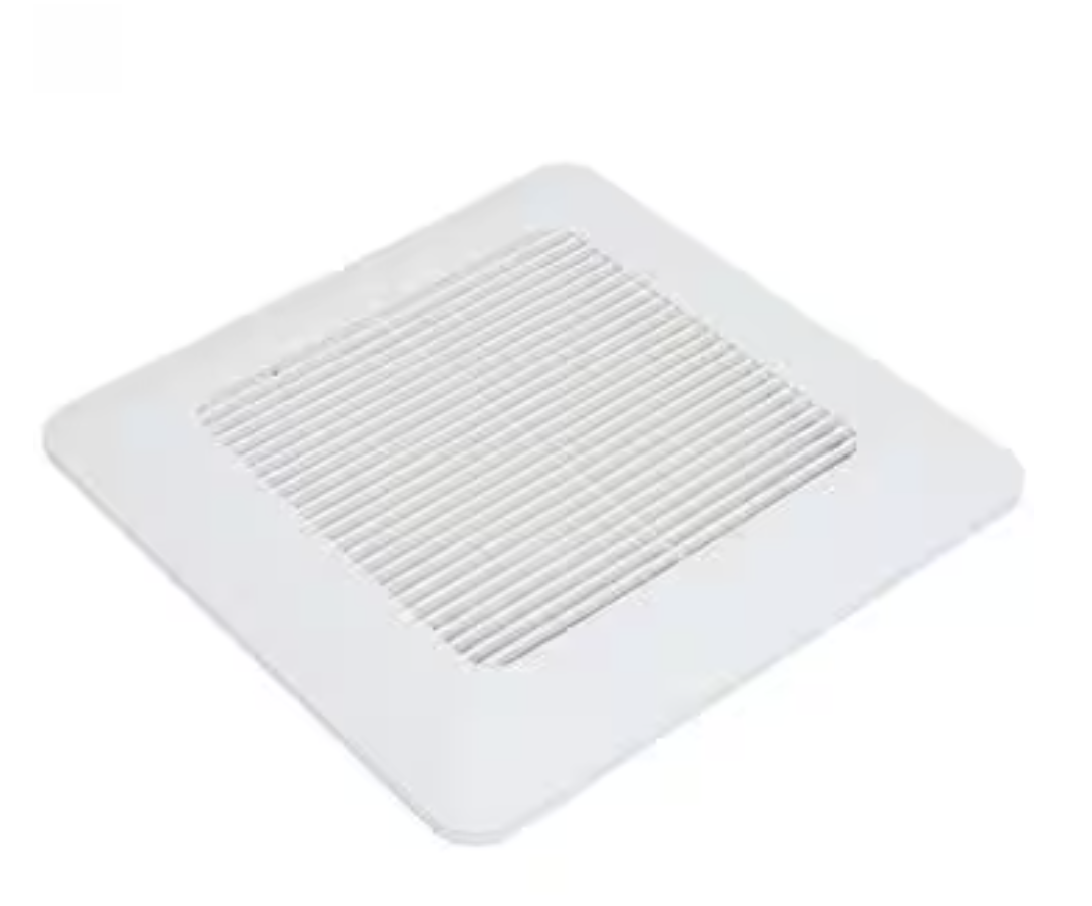

- Energy-Efficient LED Lighting: Features a 10W dimmable LED light panel with a <1W night light for warm, efficient illumination (ENERGY STAR 2.0 certified).

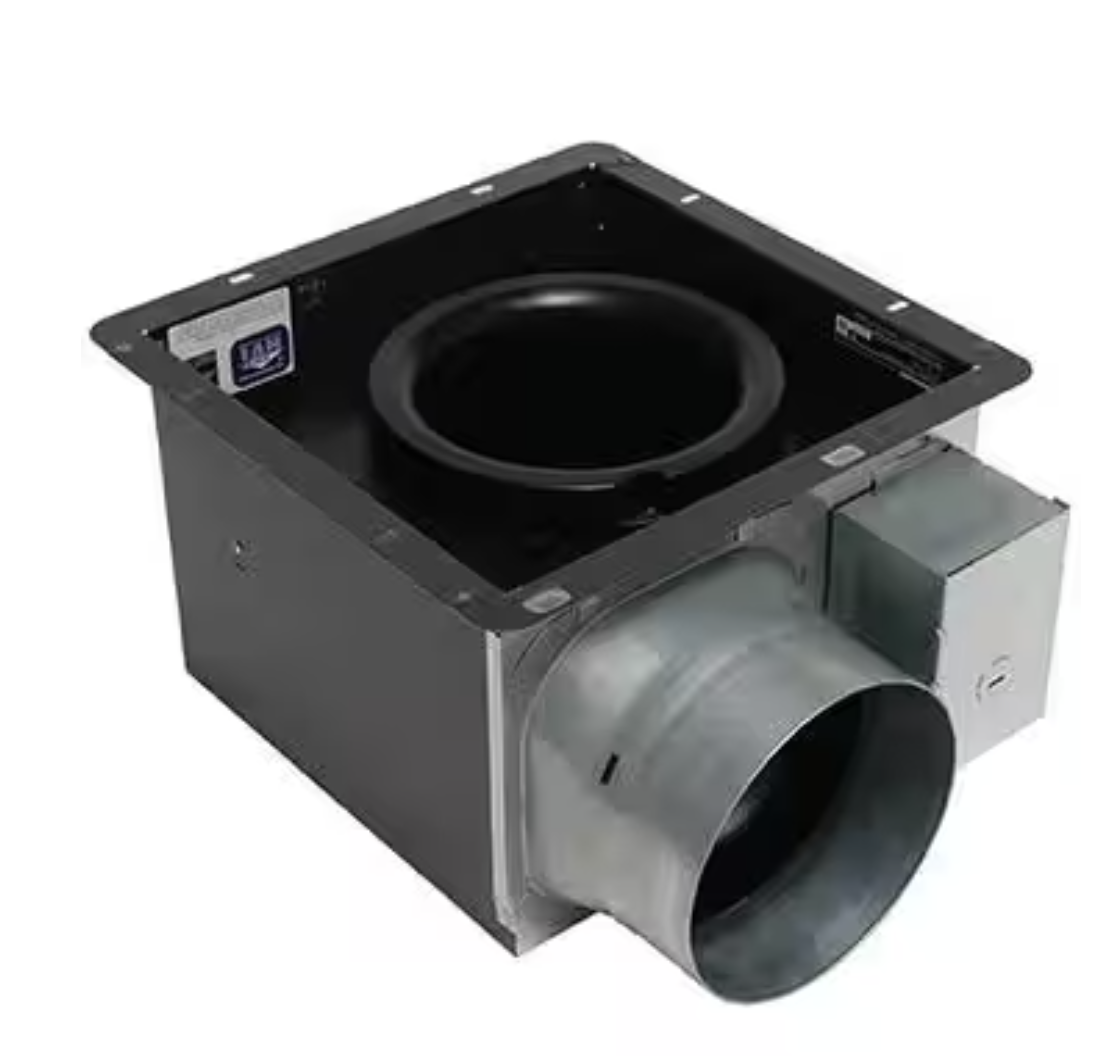

- Flexible Installation: Includes Flex-Z Fast bracket for quick and adaptable mounting in both new and existing constructions.
- Long-Lasting Performance: ENERGY STAR certified for efficiency with a high-performance motor and thermal-cutoff fuse for extended lifespan and lower operating costs.
- UL listed for tub/shower enclosure when GFCI protected
- Energy Star rated and certified by the Home Ventilation Institute (HVI)
- Can be used to comply with ASHRAE 62.2, LEED, Energy Star IAP, EarthCraft, California Title 24 and Washington Ventilation code
Dimensions
|
Housing Length (in.) |
10.25 |
Housing Width (in.) |
10.25 |
|---|---|---|---|
|
Product Height (in.) |
8.51 in |
Product Length (in.) |
13.00 in |
|
Product Width (in.) |
13.00 in |
Details
|
Air Volume (CFM) |
110, 130, 150 |
Amperage (amps) |
0.12, 0.16, 0.19 |
|---|---|---|---|
|
Color/Finish |
White |
Duct Compatible Sizes |
6 in |
|
Features |
Adjustable Fan Speed, Roomside Installation |
Grill Shape |
Square |
|
Housing Material |
Metal |
Included |
No Additional Items Included |
|
Installation Type |
Ceiling |
Maximum Room Size (sq. ft.) |
150 |
|
Mount Type |
Flush Mount |
Pack Size |
1 |
|
Product Weight (lb.) |
9.48 lb |
Returnable |
30-Day |
|
Room Size |
Large Room Fan |
Voltage (V) |
120 V |
|
Wattage (watts) |
11.7, 6.8, 9 |
