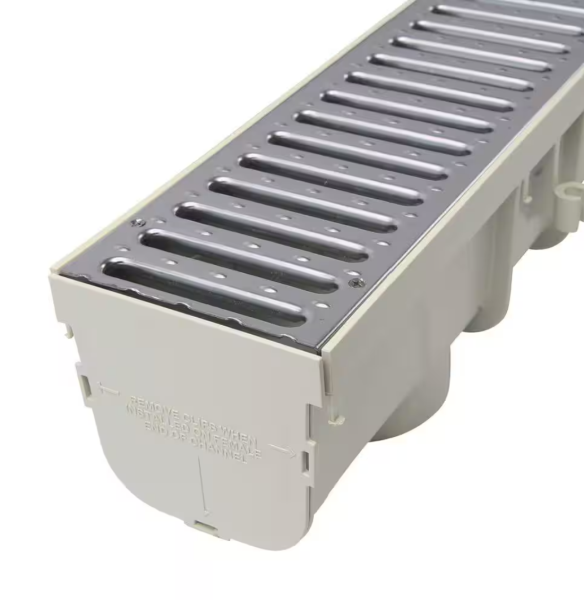

NDS 864GMTL Channel Drain Kit/Grate

Highlights

• Prevent mildew growth, concrete staining, and costly structural damage by capturing and conveying excess surface water to drain pipe for release downstream
• The 5 in. Pro Series Channel Drain Kit with Deep Profile Channel is ideal for draining moderate flows from hardscape surfaces such as driveways, concrete and paver patios, courtyards, walkways, and sports facilities
• Channel sections connect together with interlocking joints; bottom outlet connects to 3 in. & 4 in. Sewer and Drain Fittings; side outlets to 3 in. Sewer and Drain pipe; end outlet to 3 in. Sewer and Drain Pipe & 4 in. Sewer and Drain Fittings
• 19.0 sq. in. per linear ft. open surface area. 59 GPM per ft. flow rate
• Rated for NDS Class B Loads (up to 175 psi) when properly installed-recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph; ADA compliant
• The 5 in. Pro Series Channel Drain is 4-3/4 in. deep and features a modular design with interlocking joints for a secure channel-to-channel connection-no couplings required, easy to cut to size in 4 in. increments with saw guide
• Included end cap/outlet combined with integrated bottom outlet and side-outlet knockouts provide 8 outlet options per channel section
• Channel-to-channel clips reduce motion during installation; rebar clips instead of lower mount clips make installation easier. Thick channel walls and extended side ribs provide increased strength and durability
• 5 in. Pro Series Channel Drain Kit comes with a Deep Profile Channel Drain, Galvanized Steel Channel Grates, End Cap/Outlet, and End Cap
• The 5 in. Pro Series Channel Drain, as part of a complete channel drainage system, collects and conveys water to drain pipes for proper release downstream
• Modular design connects together for longer runs, can be cut to size as short as 4 in. long for smaller sections
• Removable grates make it easy to clean debris from channel for maintenance
• 5 in. Pro Series Channel made of polypropylene (PP) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking. Grates made of galvanized steel
• Create longer runs by connecting additional 5 in. Pro Series Channel Drain(s) and Channel Drain Grates (sold separately)
• Use with 5 in. Pro Series Channel Drain Qwik-Turn Deep Radius Couplings to install drainage around areas with curved edges such as patios, fountains, pools, and spas. Use with a Pop-Up Drainage Emitter to discharge collected water at a point of release downstream; use with a Flo-Well Dry Well System and EZ Drain Gravel-Free French Drain System to detain excess water and slowly release it into the ground
• Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
• Founded in 1972, NDS is the preferred choice of professionals, the largest supplier of channel drains in North America, and the leader in stormwater management with proven products, tools, and support to help you get the job done right
