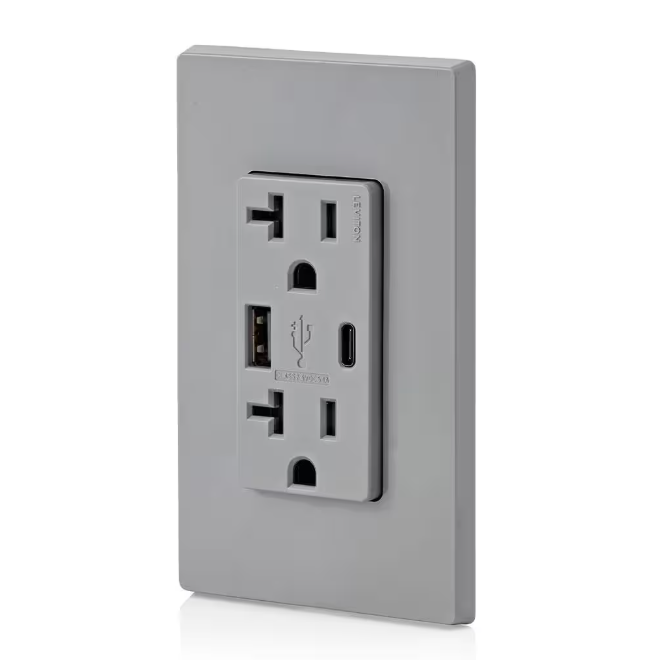

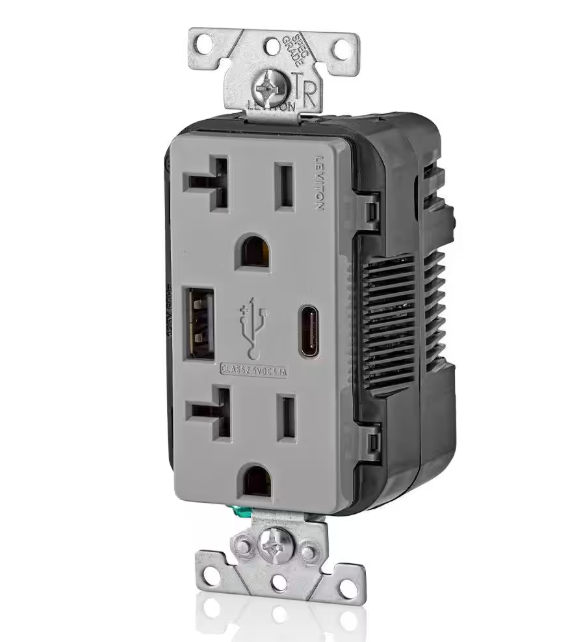

Leviton 20 Amp Type A and Type-C USB Charger/Tamper Resistant Receptacle, Gray
Leviton 20 Amp Type A and Type-C USB Charger/Tamper Resistant Receptacle, Gray
Couldn't load pickup availability
About This Product
The Type A and Type-C USB Charger/Tamper Resistant Receptacle offers superior charging power for smartphones, tablets, laptops, monitors, printers and more. 2 high powered vertical USB Ports, 1 Type A and 1 Type-C, deliver a combined total of 5.1A charging current and 25+-Watt of power. Smart chip technology recognizes and optimizes the charging requirements of individual devices and the Type-C Port enables the cables to be inserted easily in either direction. The Type A and Type-C USB Charger/Tamper Resistant Receptacle is a powerful solution to help keep your devices charged with ease and style.
Highlights
- Smart - built-in smart chip recognizes the individual device's charging requirements to optimize the charge
- Powerful - 2 high-powered charging ports deliver a combined total of 5.1 Amp charging current and 25+ Watt of power
- Convenient - no more searching for charging adapters, upgrade so you can charge electronics leaving the outlets free for additional power needs
- Future of charging USB type C provides faster charging and is emerging as the standard port on many phones and tablets such as iPhone XS/MAX/XR/X/8/7/6, iPad, Samsung Galaxy S9/S8/S7/S6, Google Pixel and more
- Enhanced safety - built-in overcurrent protection helps protect electronics from receiving too much power, which can damage the device
- Wall plate sold separately
Dimensions
|
Outlet Depth (in.) |
1.31 |
|---|---|
|
Outlet Height (in.) |
4.04 |
|
Outlet Width (in.) |
1.73 |
Details
|
Amperage (A) |
20 A |
|---|---|
|
Color Family |
Gray |
|
Color/Finish |
Gray |
|
Commercial/Residential |
Commercial, Residential |
|
Configuration |
USB-A, USB-C |
|
Device Style Type |
Outlet w/o Wall Plate |
|
Durability |
Tamper Resistant |
|
Electrical Features |
Receptacle Combination |
|
Grounding |
Grounded |
|
Included |
No Additional Items Included |
|
Indoor/Outdoor |
Indoor |
|
Maximum Amperage (A) |
20 A |
|
Mounting Type |
In-Wall |
|
NEMA Configuration |
NEMA 5 |
|
Number of Poles |
0 |
|
Number of Ports |
2 |
|
Number of Receptacles |
2 |
|
Outlet Configuration |
Duplex |
|
Outlet Location |
Wall |
|
Outlet Material |
Thermoplastic |
|
Outlet Type |
Not Protected |
|
Package Quantity |
1 |
|
Plug Configuration |
5-20 |
|
Rating |
Tamper Resistant |
|
Receptacle Configuration |
5-20 |
|
Returnable |
30-Day |
|
Voltage |
125 volt |
|
Voltage (V) |
125 V |
|
Wall Plate Configuration |
1-Decorator / Rocker / 1-Duplex |
|
Wire Connection Location |
Back, Side |
|
Wire Connection Type |
Screw Terminal |
