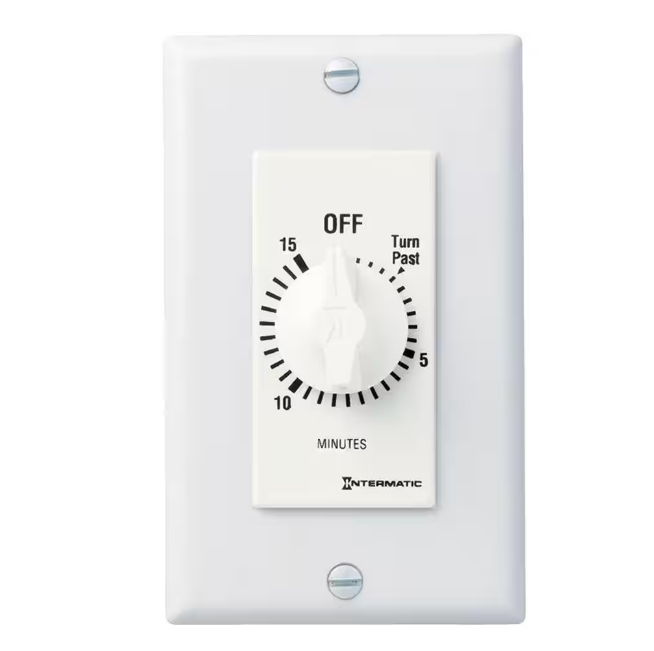

Intermatic 20 Amp 15-Minute Spring Wound In-Wall Timer - White
Intermatic 20 Amp 15-Minute Spring Wound In-Wall Timer - White
Couldn't load pickup availability
About This Product
The SW Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads.
Highlights
- No electricity required to operate
- Replaces any standard or decorator single- or multi-gang wall switch
- Automatically limits ON time for energy consuming loads
- Quick and easy installation
- Time-saving up front terminal connection with teeter-type terminals
- Incandescent/fluorescent/CFL/LED compatible
- No neutral connection is required
- Wall plate not included
- Model SW15MWK
Dimensions
|
Wall Plate Depth (in.) |
.16 |
|---|---|
|
Wall Plate Height (in.) |
4.5 |
|
Wall Plate Width (in.) |
2.75 |
Details
|
Amperage (A) |
20 A |
|---|---|
|
Color Family |
White |
|
Color/Finish |
White/Plastic |
|
Commercial/Residential |
Commercial, Residential |
|
Compatible Bulb Type |
CFL, Incandescent, LED |
|
Device Style Type |
Timer w/ Wall Plate |
|
Dial/Digital |
Dial |
|
Durability |
Not Applicable |
|
Electrical Features |
No Additional Features |
|
Function Type |
Single Pole |
|
Included |
Wall Plate |
|
Indoor/Outdoor |
Indoor |
|
Material |
Thermoplastic |
|
Maximum Amperage (A) |
20 A |
|
Maximum Time Setting (Min.) |
15 |
|
Mounting Type |
In-Wall |
|
Number of Components |
3 |
|
Number of Poles |
1 |
|
Package Quantity |
1 |
|
Rating |
General Purpose |
|
Returnable |
30-Day |
|
Switch Depth (in.) |
.202 in |
|
Switch Height (in.) |
2.636 in |
|
Switch Style |
Rotary |
|
Switch Width (in.) |
1.313 in |
|
Voltage |
125 volt |
|
Voltage (V) |
125 V |
|
Wall Plate Material |
Thermoplastic |
|
Wattage (W) |
875 W |
