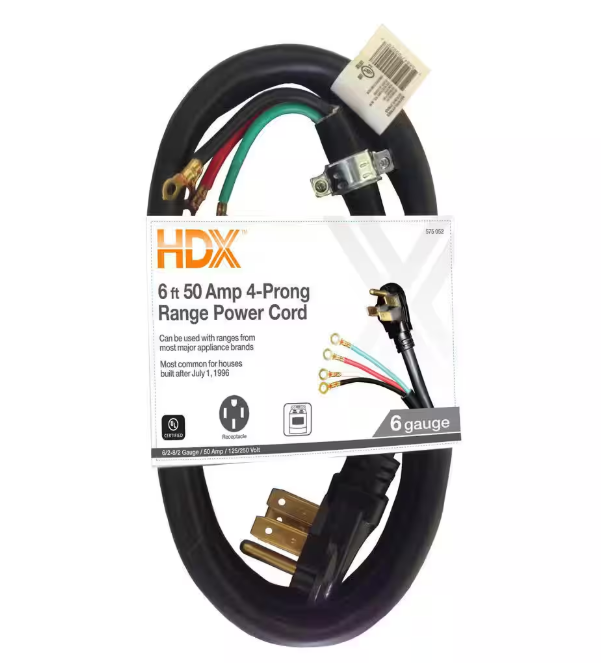

HDX 6 ft. 6/4 50 Amp 4-Prong Range Power Cord, Black
HDX 6 ft. 6/4 50 Amp 4-Prong Range Power Cord, Black
Couldn't load pickup availability
About This Product
This HDX 6 ft. 50 Amp 4-Prong Range Power Cord can be used to either install any new range or replace the power cord on any existing range that needs to attach to a 50 amp 4-prong outlet. This also can be used with ranges from most major appliance brands for both new and existing installs. This cord has a 50 Amp, 125V/250V, 6250 wattage with a maximum capacity of 12,500-Wattage.
Highlights
- Can be used with ranges from most major appliance brands for both new and existing installs

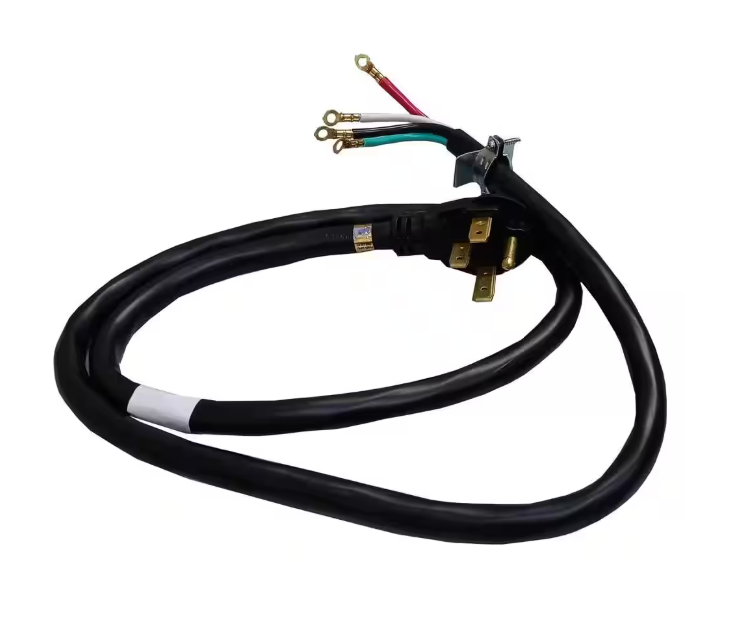

- 6 ft. vinyl cord with right angle plug
- Strain relief clamp protects against cord damage
- Black Cord

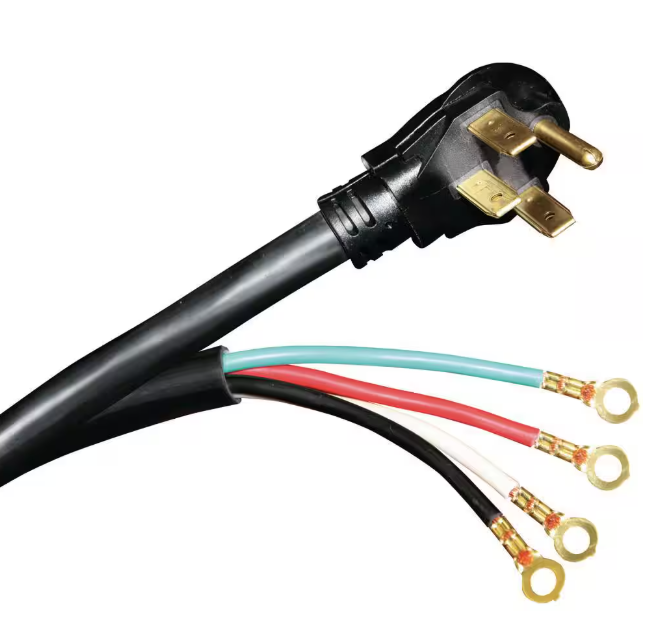

- Two 6-Gauge wires and two 8-Gauge wires with ring terminals
- 50 Amp, 125-Volt/250-Volt, 6,250-Watt/12,500-Watt capacity
- UL Listed
- Black (hot), red (hot), white (neutral) and green (ground)
- Most common for houses built after July 1, 1996
Dimensions
|
Cord Thickness (in.) |
0.74 in |
|---|---|
|
Wire Gauge |
6 |
Details
|
Cord Color |
Black |
|---|---|
|
Cord Designation |
SRDT |
|
Cord Filling |
Tubed with No Filler |
|
Cord Length (ft.) |
6 ft |
|
Cord Type |
Range Cord |
|
Durability |
Not Applicable |
|
Features |
No Additional Features |
|
Gauge |
6 |
|
Jacket Material |
PVC |
|
Maximum Amperage (A) |
50 A |
|
Maximum Wattage |
12500 |
|
Number of Conductors |
4 |
|
Pack Size |
1 |
|
Plug Configuration |
14-50 |
|
Plug Housing Material |
Polycarbonate Thermoplastic |
|
Returnable |
30-Day |
|
Voltage (V) |
125/250 V |
|
Weight (lb.) |
3.02 lb |
