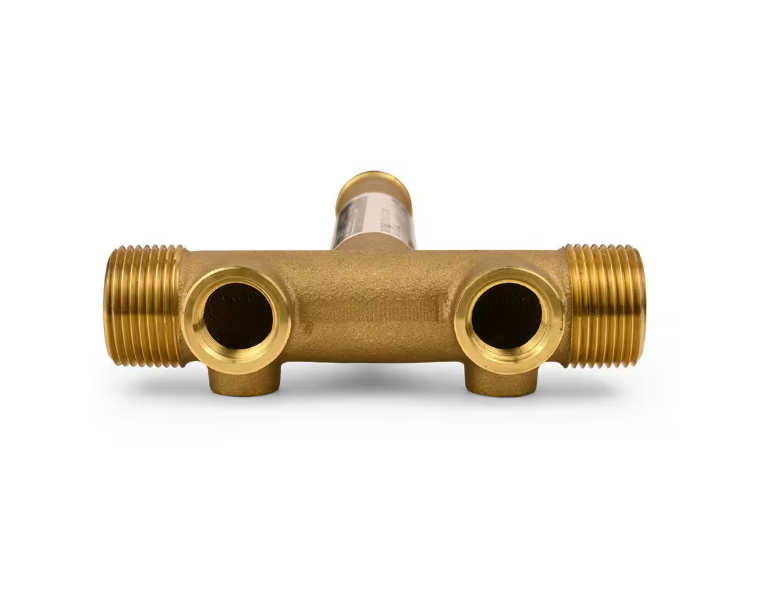

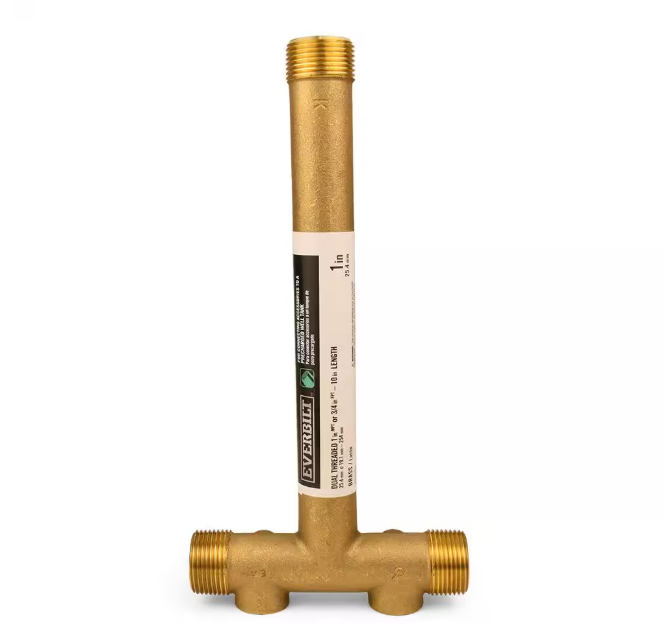

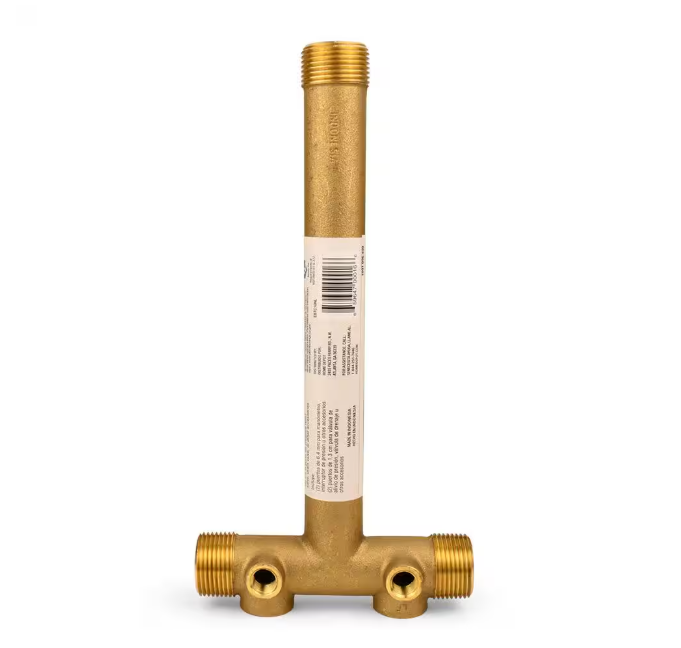

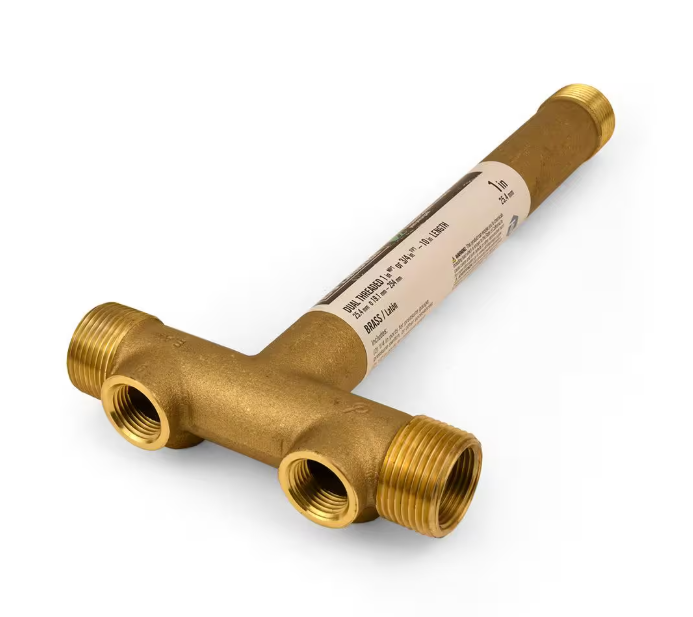

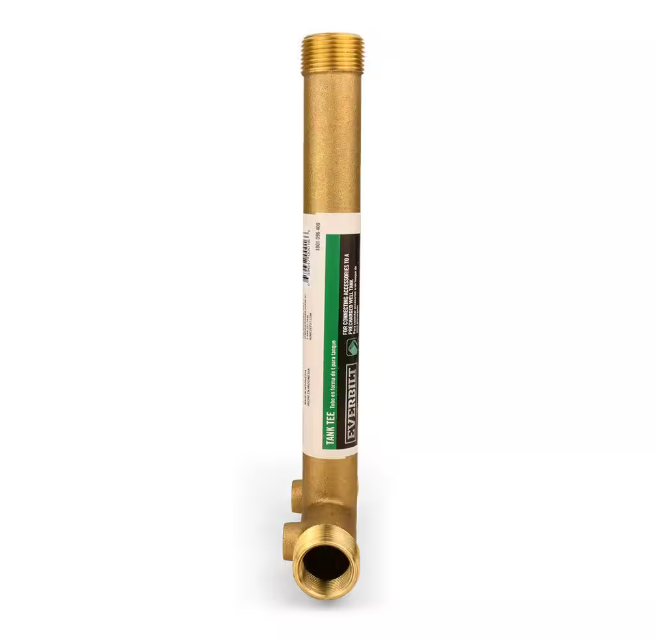

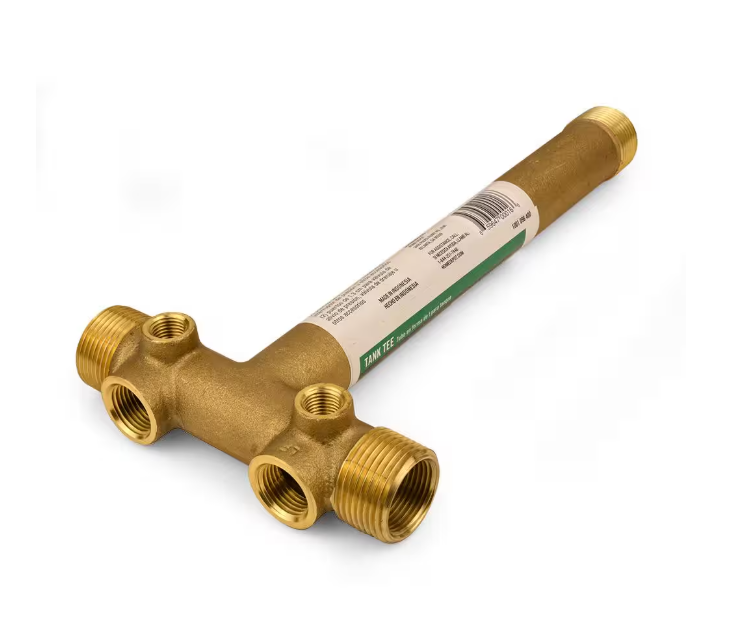

Designed to connect the water line from the pump to the pressure tank, this 10 in. long 1 in. dia. Brass Tank Tee can be used with 1/4 in. and 1/2 in. ports. Solid brass design meets federal low lead regulations.
Highlights
Connects the water line from the pump to the pressure tank
10 in. length allows for use with vertical pressure tanks 36 Gal. and below
Tank connection is 1 in. male NPT thread; other two connections are dual threaded with 1 in. male NPT and 3/4 in. female NPT threads
Two 1/4 in. ports on the top for pressure switch, pressure gauge or plug
Two 1/2 in. ports on the front for pressure relief valve and boiler drain valve
Solid brass design meets federal low lead regulations
