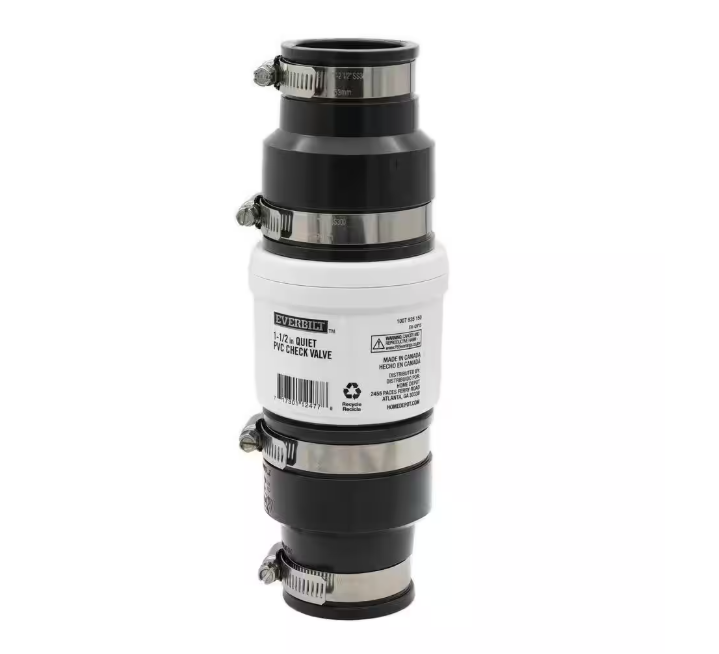

Everbilt 1.5 in. Quiet PVC Check Valve

Everbilt 1.5 in. Quiet PVC Check Valve

Regular price $28.79 USD
Regular price $34.98 USD Sale price $28.79 USD
Sale Sold out
Tax included.

About This Product

Are you tired of being kept awake by the loud clunking of the check valve when your sump pump turns off and the valve closes? The EV-QV15-a high-quality, quiet check valve-eliminates the loud 'clunk'. This quiet check valve is spring loaded and has an angled seat, reducing the loud noise from the flapper closing after the pump turns off, so no more clunk. Besides being quiet, the EV-QV15 check valve creates a stable installation, removing the lean and wobble. Standard rubber-booted check valves can also be a disaster when they pop off-or worse, if the rubber gives way after years of pressure on the connections. When the EV-QV15 is installed, the 1-½-inch discharge pipe can be seated inside the PVC check valve for extra stability, taking the pressure off the couplings. The full-flow design causes less friction and allows for easier pumping. The EV-QV15 quiet check valve can be used in horizontal or vertical (solid free) installations with either schedule 40 or 80 PVC.

Highlights

  • 1.5 in. full-flow design allows for increased capacity making it ideal for sump applications

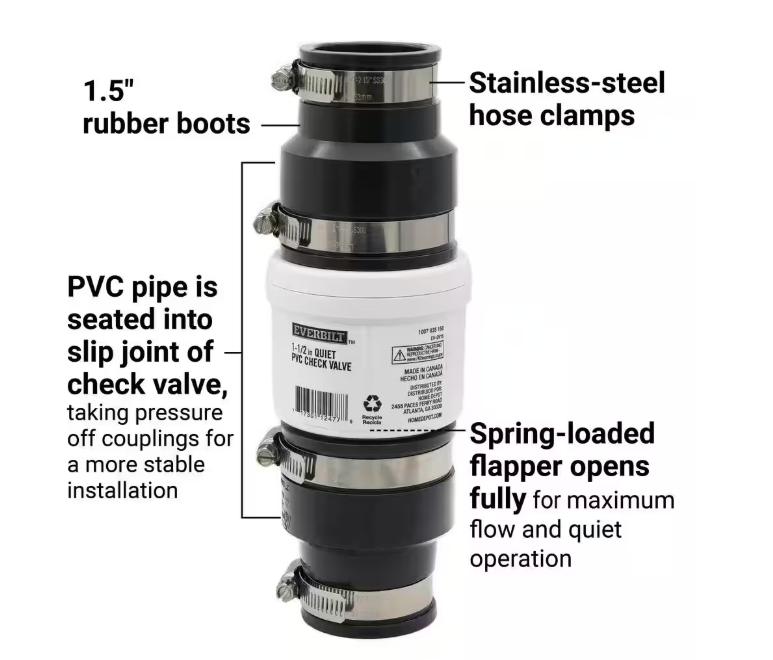

  • Spring loaded and angle seat design minimizes noise when the pump shuts off

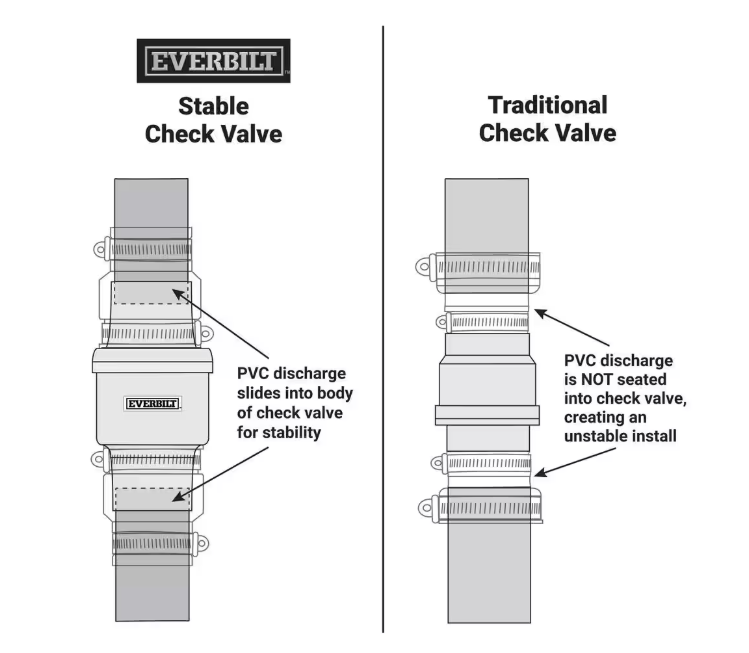

  • Discharge pipe can be seated inside the PVC check valve for extra stability and a more secure installation
  • Great for sump and effluent applications
  • Compatible with sch. 40 or 80 PVC pipe
  • Maximum working pressure: 125 psi at 72°F
  • Certified ASTM D1784

Dimensions

Inlet Diameter (In.)

1-1/2

Outlet Diameter (In.)

1-1/2

Product Depth (in.)

3.38 in

Product Height (in.)

9.63 in

Product Length (in.)

3.38 in

Product Width (in.)

3.38 in

Details

Application

Rough-In valve

Compatible Pipe Material

PVC

Connection

Slip-Joint

Features

Includes Check, Slip Joint Connect

Indoor/Outdoor

Indoor

Material

PVC

Maximum Pressure (PSI)

125 PSI

Maximum Working Temperature (F)

125

Pack Size

1

Product Weight (lb.)

1.5 lb

Returnable

30-Day

Valve Type

Check
