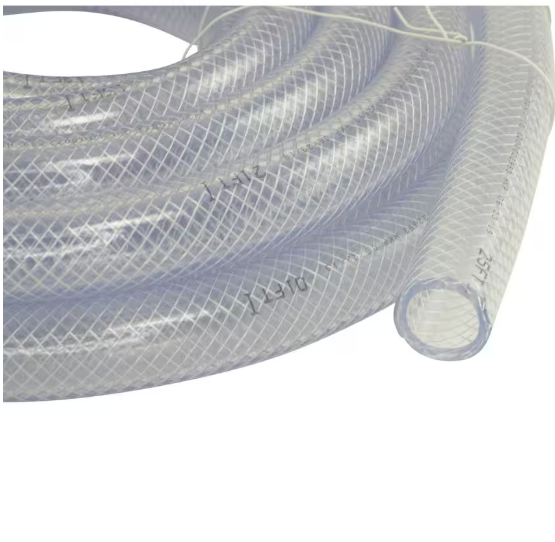

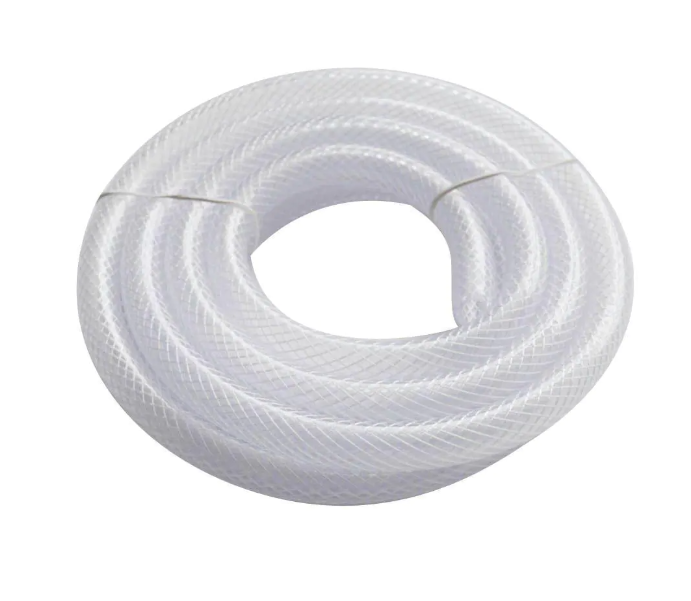

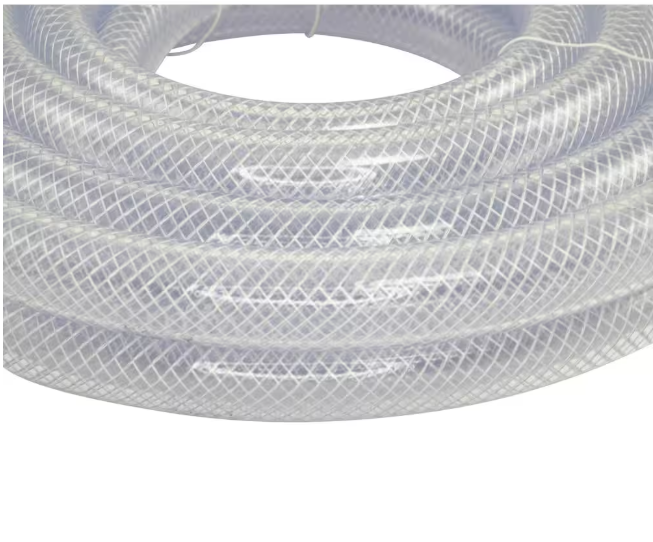

Everbilt 1-3/8 in. O.D. x 1 in. I.D. x 25 ft. PVC Braided Vinyl Tube
Everbilt 1-3/8 in. O.D. x 1 in. I.D. x 25 ft. PVC Braided Vinyl Tube
Couldn't load pickup availability
About This Product
This braided vinyl tubing is made from polyester braided reinforced polyvinyl chloride and has the strength to withstand 4 times the working pressure of single wall PVC. The smooth, dense bore of the tubing maximizes flow rate and reduces sediment buildup. It has excellent resistance to acids, alkalis and many solvents, and handles a wide variety of chemicals, gases and liquids. It provides superior performance under severe operating conditions, and is excellent for hydraulic, pneumatic and vacuum lines.
Highlights
- Made of non-toxic material
- Excellent resistance to acids, alkalis, and many solvents
- Handles a wide variety of chemicals, non-flammable gases, and liquids
- NSF 51 certified. Not for use with potable water.
- Do not use for icemakers
- Attractive transparent appearance
- Easy to use.
- Operating Temperature Range: -40f to +125f Working pressure at 70f: 125 psi

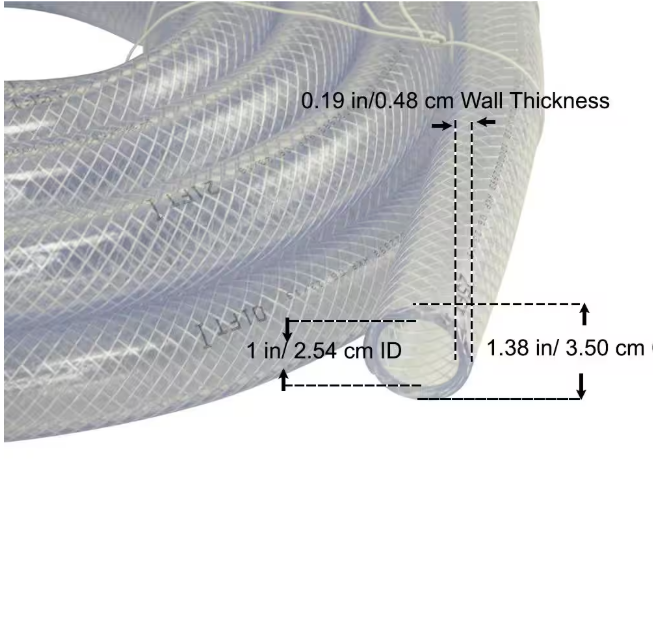

Dimensions
|
Actual inside diameter (in.) |
1 |
|---|---|
|
Actual outside diameter (in.) |
1.375 |
|
Nominal Inside Pipe Diameter (In.) |
1" |
|
Pipe Wall Thickness (In.) |
.1875 |
|
Product Length (ft.) |
25 ft |
Details
|
Application |
Non-Potable Water |
|---|---|
|
Color Family |
Clear |
|
Color/Finish |
Clear |
|
Connectivity |
Solvent Cemented |
|
Material |
PVC |
|
Maximum Flow Rate (gallons per minute) |
0 |
|
Maximum working pressure (psi) |
125 |
|
Maximum Working Temperature (F) |
125 |
|
Minimum working temperature (F) |
-40 |
|
Pack Size |
1 |
|
Pipe Features |
No Additional Features |
|
Pipe or Fitting Product Type |
Pipe & Tubing |
|
Product Weight (lb.) |
9.23 lb |
|
Returnable |
30-Day |
