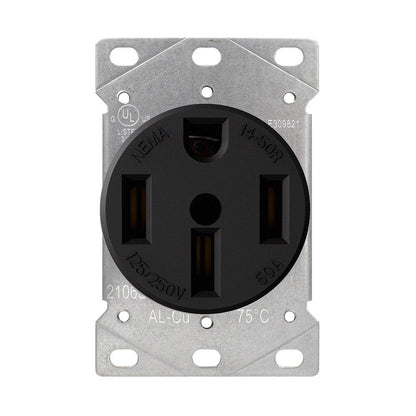

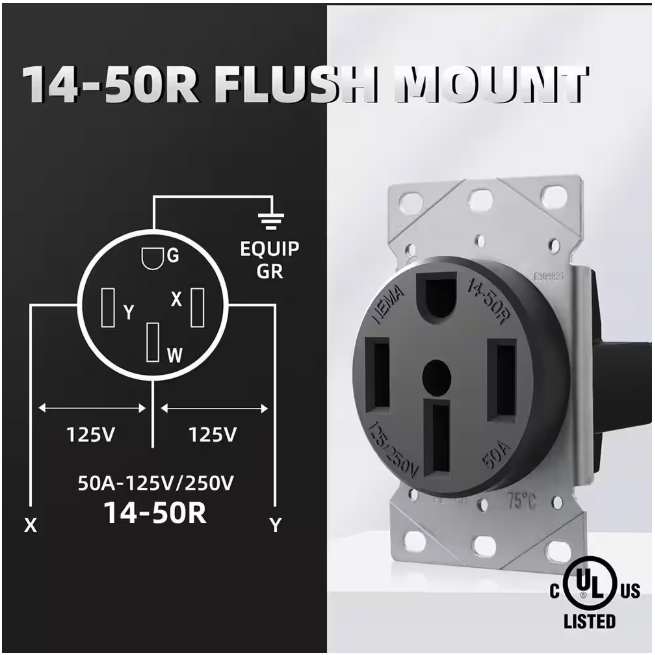

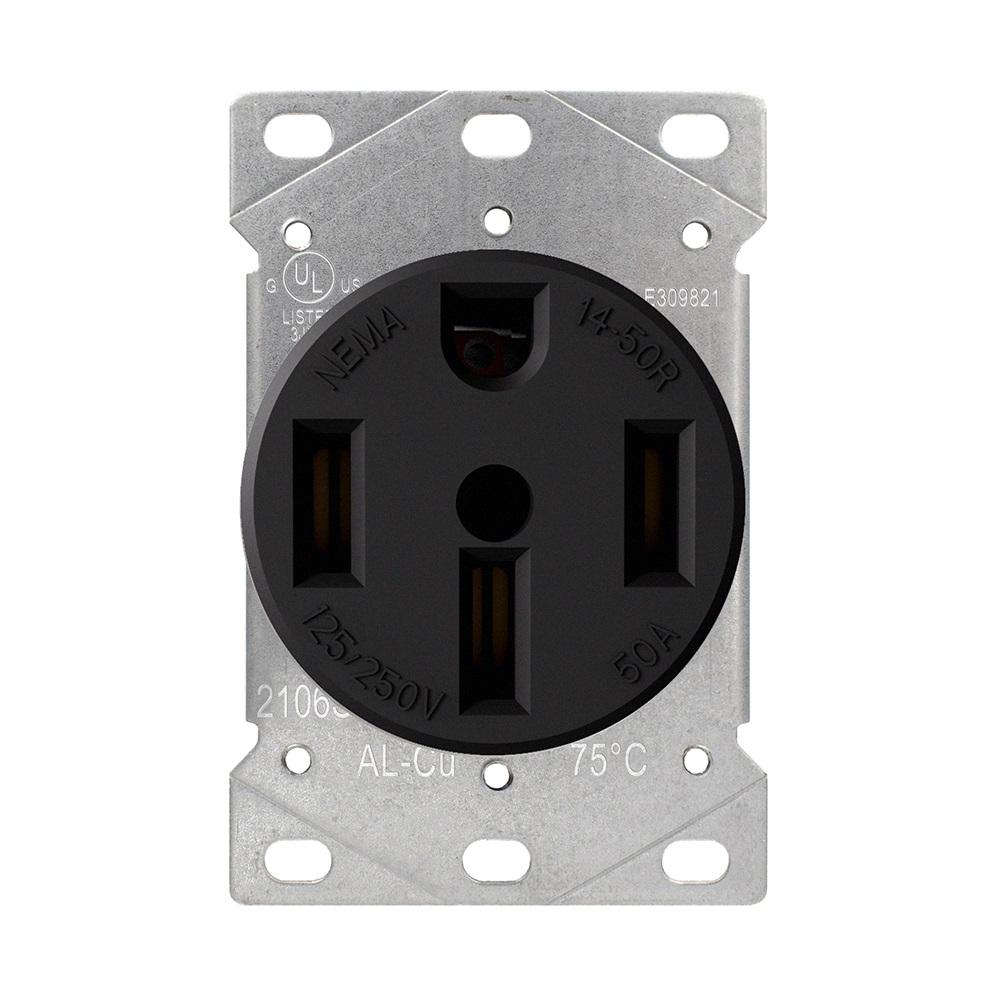

ELEGRP 50 Amp 125/250V NEMA 14-50R Flush Mount Power Outlet Straight Blade Range and Dryer Outlet Grounding Black 2106S
ELEGRP 50 Amp 125/250V NEMA 14-50R Flush Mount Power Outlet Straight Blade Range and Dryer Outlet Grounding Black 2106S
Couldn't load pickup availability
About This Product
ELEGRP's power outlet are built to provide unparalleled quality and superior performance in the most severe industrial settings. ELEGRP's devices combine the best materials available with superior production standards to produce a broad selection of locking devices. That makes it unmatched flexibility and dependability.
Highlights
- Flush mount receptacle feature a heavy gauge galvanized steel mounting strap for corrosion resistance
- Fits in both single and 2-gang box styles, flush receptacles are completely ready-to-wire, shorten installation time significantly
- Large and brass contacts produce superior contact pressure that results in outstanding conductivity

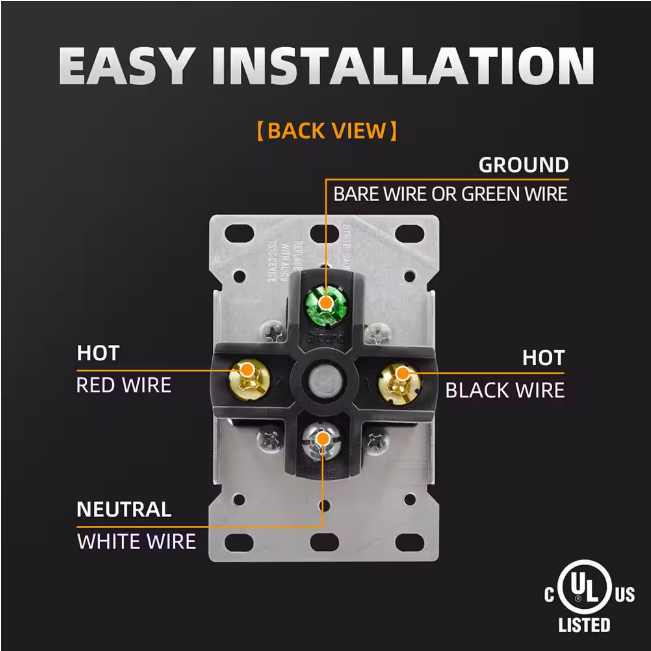

- Terminals marked for easy identification and fast wiring, all mounting hardware included
- Widely use for heavy electrical dryers, ranges, (EV) electric vehicles, welders, outdoor electrical generators and other heavy-duty and high power appliance
- UL and CUL Listed

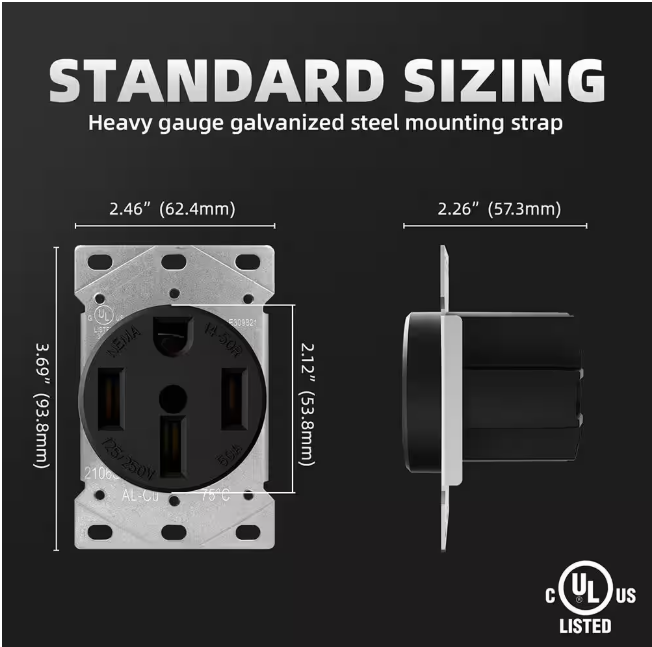

Dimensions
|
Outlet Depth (in.) |
2.23 |
|---|---|
|
Outlet Height (in.) |
3.7 |
|
Outlet Width (in.) |
2.46 |
Details
|
Amperage (A) |
50 A |
|---|---|
|
Color Family |
Black |
|
Color/Finish |
Black |
|
Commercial/Residential |
Residential |
|
Configuration |
Standard |
|
Device Style Type |
Outlet w/o Wall Plate |
|
Durability |
Not Applicable |
|
Electrical Features |
No Additional Features |
|
Grounding |
Ungrounded |
|
Included |
No Additional Items Included |
|
Indoor/Outdoor |
Indoor |
|
Maximum Amperage (A) |
50 A |
|
Mounting Type |
In-Wall |
|
NEMA Configuration |
NEMA 14 |
|
Number of Poles |
3 |
|
Number of Receptacles |
3 |
|
Outlet Configuration |
Single |
|
Outlet Location |
Wall |
|
Outlet Material |
Thermoplastic |
|
Outlet Type |
Not Protected |
|
Package Quantity |
1 |
|
Plug Configuration |
14-50 |
|
Rating |
General Purpose |
|
Receptacle Configuration |
14-50 |
|
Returnable |
30-Day |
|
Voltage |
125 volt, 250 volt |
|
Voltage (V) |
125/250 V |
|
Wire Connection Location |
Back |
|
Wire Connection Type |
Screw Terminal |
