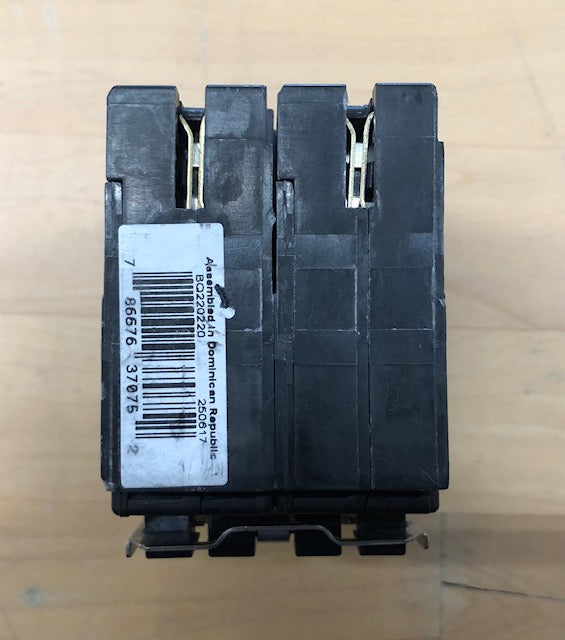

Eaton BR 2-20 Amp 2 Pole BQ (Independent Trip) Quad Circuit Breaker
Eaton BR 2-20 Amp 2 Pole BQ (Independent Trip) Quad Circuit Breaker
Couldn't load pickup availability
About This Product
Circuit breakers protect the wires in your home from overheating (referred to as an overload) and fault currents (referred to as short circuits). The Eaton Cutler-Hammer Quadplex or Quad type Circuit Breaker is designed to create (4) circuits in (2) spaces. This allows for 240-Volt circuits. The BQ style breaker has an independent trip as well as a rejection tab feature. These breakers are designed for use in BR type load centers and should be installed only in panel positions that have notched bus stabs that accommodate the rejection clip. Also, BQ circuit breakers are UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger, and Bryant.
Highlights
- Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
- Amperage - (2) 2 pole 20 Amp
- Number of poles - 4
- Trip type - independent
- For use in type BR load centers
- Interrupt rating - 10 kAIC
- Voltage rating is 120/240V
- Wire size - #14-4 AWG Cu/Al at 60°C or 75°C
- Carry listing for HACR applications
- Breaker has a rejection tab feature
Dimensions
|
Product Depth (in.) |
2.896 in |
|---|---|
|
Product Height (in.) |
3.1 in |
|
Product Width (in.) |
1.97 in |
Details
|
AIC Rating |
10000 |
|---|---|
|
Amperage (A) |
20 A |
|
Breaker Type |
Tandem |
|
Connection Type |
Neutral |
|
Interruption Type |
Standard Trip |
|
Mounting Type |
Plug-On |
|
Number of Poles |
Quad |
|
Number of Spaces |
2 |
|
Pack Size |
1 |
|
Product Weight (lb.) |
0.78 lb |
|
Returnable |
30-Day |
|
Series Type |
BR |
|
Trip Unit |
Thermal Magnetic |
|
Voltage (V) |
120/240 V |
