Contractor Select WPD Single Pole Phase Dimming Dimmer Switch - White
Contractor Select WPD Single Pole Phase Dimming Dimmer Switch - White
Couldn't load pickup availability
About This Product

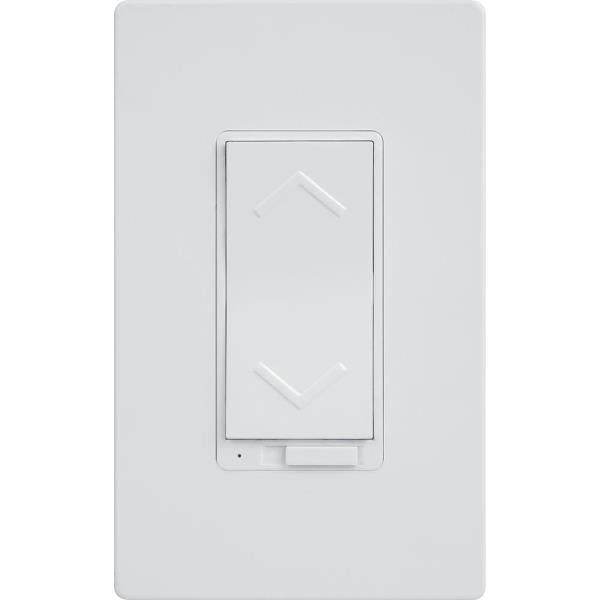

The Sensor Switch WPD Forward-Phase Dimmer Switch is a commercial- and residential-grade paddle dimmer that works with most dimmable incandescent, LED and CFL lamp fixtures. The WPD allows the user or installer to set high and low trim settings and return to default easily and efficiently. Its elegant design does not compromise function, whereas this device offers extremely smooth dimming control that meets NEMA SSL-7A requirements.
Highlights
- Perfect replacement for regular wall on/off and dimming control of most dimmable incandescent, LED and CFL lamp fixtures
- Preset light level option allows the dimmer will turn on to the light level that it was adjusted to the previous time when the light was on
- Program high and low dimming range, fixtures illuminate according to previously adjusted light levels
- UL 1472 listed and NEMA SSL 7A certified, air-gap switch feature meets UL requirements and disconnects power from load locally
- Use with single-pole or 3-way control with a regular on/off mechanical switch (sold separately)
- 600-Watt maximum dimming load
- UL 1472 listed and NEMA SSL 7A certified solution accepts 120-Volt AC line voltage from a single device and includes a sliding air-gap switch to disconnect power while replacing bulbs
- Product does not include emergency battery back up features

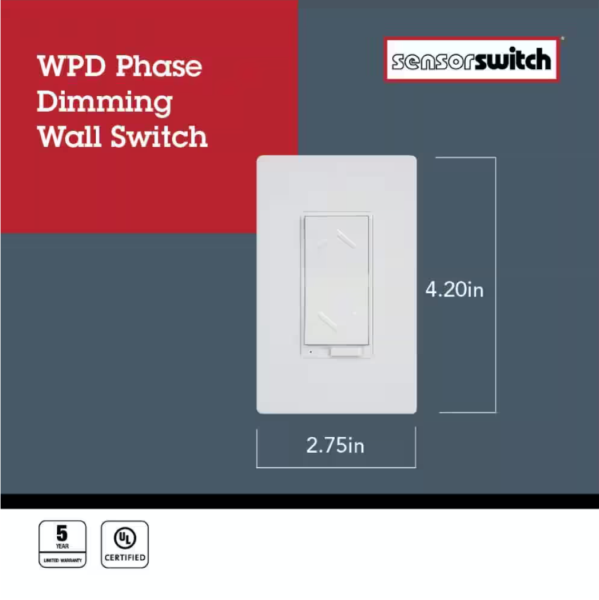

Dimensions
|
Wall Plate Depth (in.) |
0.1 |
Wall Plate Height (in.) |
4.20 |
|---|---|---|---|
|
Wall Plate Width (in.) |
2.75 |
Details
|
Amperage (A) |
2 A |
Color Family |
White |
|---|---|---|---|
|
Color/Finish |
White |
Commercial/Residential |
Commercial, Residential |
|
Compatible Bulb Type |
CFL, Incandescent, LED |
Device Style Type |
Dimmer w/ Wall Plate |
|
Dimmable Capability |
Dimmable |
Dimmer Type |
Tap |
|
Durability |
Not Applicable |
Electrical Features |
No Additional Features |
|
Finish Type |
Matte |
Function Type |
Single Pole |
|
Included |
No Additional Items Included |
Indoor/Outdoor |
Indoor |
|
Material |
Thermoplastic |
Maximum Amperage (A) |
2 A |
|
Mounting Type |
Wall Switch |
Number of Components |
1 |
|
Number of Poles |
1 |
Number of Switches |
Two |
|
Package Quantity |
1 |
Rating |
General Purpose |
|
Returnable |
90-Day |
Switch Depth (in.) |
1 in |
|
Switch Height (in.) |
4.20 in |
Switch Style |
Push Button |
|
Switch Width (in.) |
2.75 in |
Voltage |
120 volt |
|
Voltage (V) |
120 V |
Wall Plate Configuration |
Dimmer |
|
Wall Plate Material |
Thermoplastic |
Wattage (W) |
600 W |
