Commercial Electric 270-Degree White Motion Activated Wired Outdoor 1-Head Dusk to Dawn Security Flood Light Sensor
Commercial Electric 270-Degree White Motion Activated Wired Outdoor 1-Head Dusk to Dawn Security Flood Light Sensor
Couldn't load pickup availability
About This Product
Contractor motion sensor with 3 PIR sensors and 270° of coverage. Specifically designed to work with most types of bulbs, including LED, incandescent, CFL and halogen. Hi-Lo feature provides accent lighting at 30% brightness from dusk-to-dawn or dusk until the middle of the night with timer (note: Dimmable bulbs are required for the Hi-Lo accent/security feature) Lights go up to 100% brightness when motion is detected. Extension arm allows sensor to extend below PAR 38 bulbs and still provides 270° coverage or can be retracted for more compact look. Automatic sensitivity adjustment optimizes the sensitivity of the unit using the built-in integrated circuit. Dusk time allows you to set custom dusk level. TEST mode for easy set-up. ECO setting minimizes energy usage. Eave and wall mountable. Operates multiple lights on the same circuit, up to 100 Watts LED, or 300-Watt incandescent or halogen lighting.
Highlights
- Motion sensor works with most types of bulbs including LED, incandescent, CFL and halogen (note: dimmable bulbs are required for the Hi-Lo accent/security feature)
- 3 pir (passive infrared) sensors provide a full 270° of coverage at a range up to 70 ft.
- Hi-lo feature, if selected provides accent lighting at 30% brightness from dusk-to-dawn or dusk until the middle of the night with timer goes up to 100% security brightness when motion is detected after dark

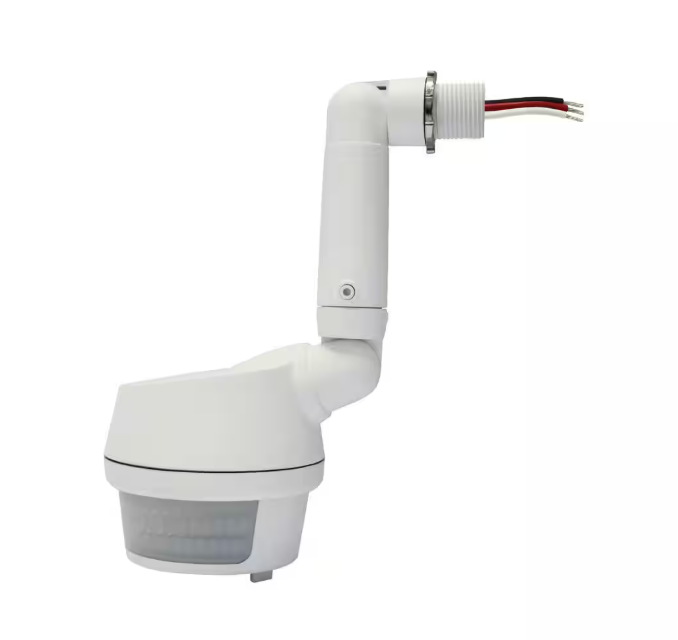

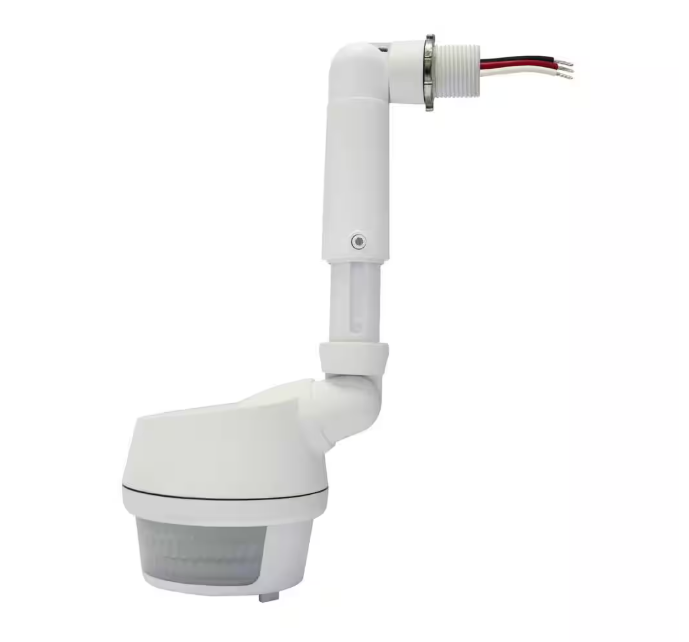

- Extension arm allows sensor to be extended below par 38-bulbs and still provides 270° coverage or retracted for more compact look
- Automatic sensitivity adjustment with advanced integrated circuit, optimizes the sensitivity automatically to adjust to changing conditions
- Temperature compensation circuitry for better reliability in extremely cold and extremely hot conditions

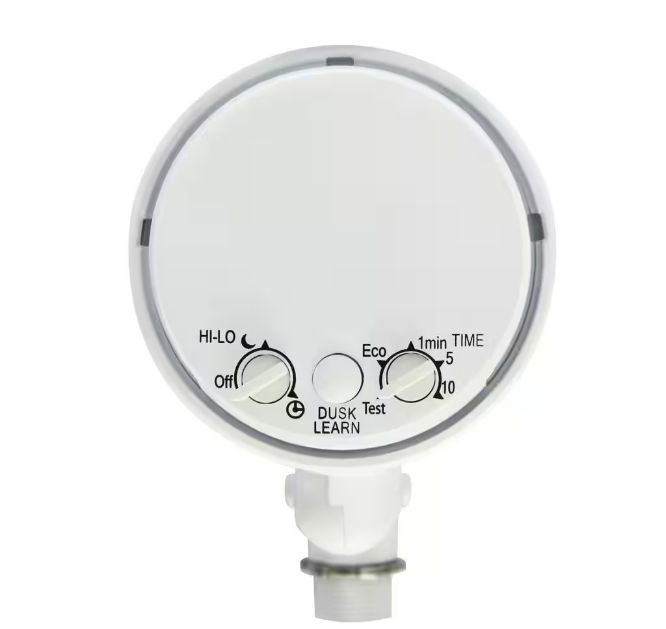

- Hi-Lo can be set to seasonally adjusted timer, dusk to dawn, or off
- Highly flexible pan, tilt and rotation of sensor for great coverage
- Motion sensor turns on lights when motion is detected after dark, can be turned on with manual override, or turned off using the light switch
Dimensions
Product Depth (in.) |
4 in |
---|---|
Product Height (in.) |
5.24 in |
Product Width (in.) |
3.15 in |
Details
Amperage (A) |
2.5 A |
---|---|
Color Family |
White |
Color/Finish |
White |
Commercial/Residential |
Residential |
Compatible Bulb Type |
LED |
Durability |
Weather Resistant |
Electrical Features |
Indicator Light |
Indoor/Outdoor |
Outdoor |
Material |
Resin |
Maximum Amperage (A) |
2.5 A |
Mounting Type |
Fixture Mounted |
Product Weight (lb.) |
1 lb |
Rating |
Weather Resistant |
Returnable |
30-Day |
Voltage |
120 volt |
Voltage (V) |
120 V |
Wattage (W) |
300 W |
