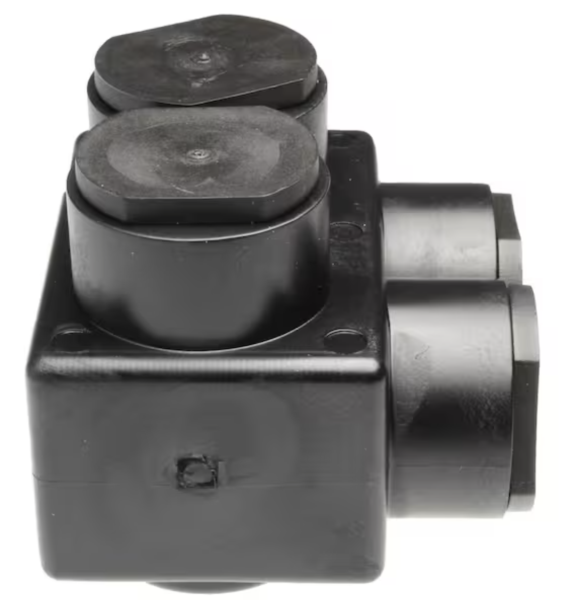

14 AWG to 2/0 AWG Dual-Rated 2-Port 1-Sided Entry Insulated Multiple Tap Connector, Black
14 AWG to 2/0 AWG Dual-Rated 2-Port 1-Sided Entry Insulated Multiple Tap Connector, Black
Commercial Electric's aluminum multiple tap connectors create semipermanent, weatherproof connections to tap, terminate and splice cables and heavier gauge conductors without special tools. Multitap connectors consist of a metal connector and insulated housing, to protect the conductors against abrasion and chemical damage. Their ports seal with a cap when not used and contain an oxide inhibitor that surrounds conductors to prevent oxidation, moisture and contaminants from entering the contact area. Dual-rated for any stranded copper or stranded aluminum applications. for indoor/dry location use only.
Highlights
- Configuration: tap - same side entry
- Conductor range: 14 SOL/STR - 2/0 STR
- Hex size (key): 3/16 in.
- Number of ports: 2
- Number of screws: 2 (Allen screws)
- Maximum torque: 100 lbf-in
- Dual-rated for any stranded copper or stranded aluminum applications
- Pre-filled with oxide inhibitor
- Pre-insulated with UV rated plastisol
- Abrasion and chemical resistant
- Contaminant-free due to solid end caps
- For Indoor/Dry location use only
Dimensions
|
Connector Depth (in.) |
1.72 |
Connector Height (in.) |
1.8 |
|---|---|---|---|
|
Connector Width (in.) |
1.68 |
Details
|
Color Family |
Black |
Maximum Wire Gauge |
2 |
|---|---|---|---|
|
Minimum Wire Gauge |
14 |
Package Quantity |
1 |
|
Returnable |
30-Day |
