Armacost Lighting 60-Watt 24-Volt Constant Voltage Universal Dimming LED Power Supply
Armacost Lighting 60-Watt 24-Volt Constant Voltage Universal Dimming LED Power Supply
Couldn't load pickup availability
About This Product

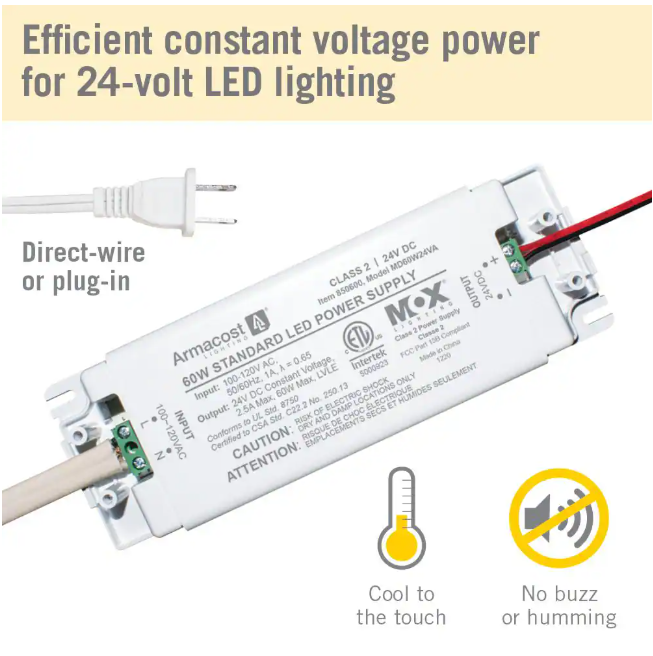

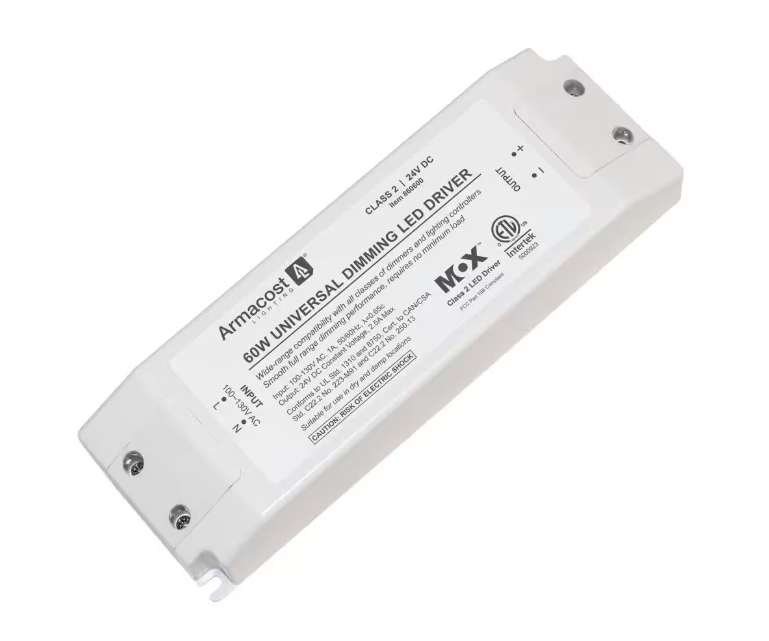

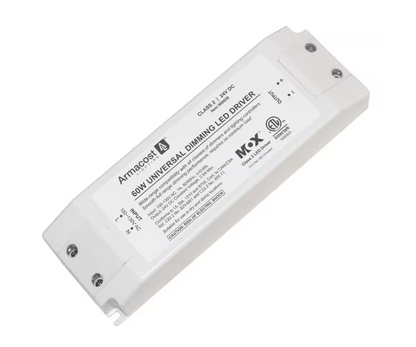

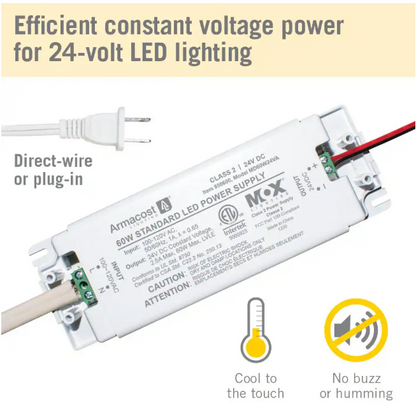

The Armacost Lighting 60-Watt; 24-Volt Universal Dimming LED Power Supply delivers stable and energy-efficient, low-voltage power to any LED lighting installation. The LED driver is designed using high-performance, professional grade electronics that provide stable 0% or 100% dimming free of any pop-on or drop-off. The power supply is rated up to 60-Watt at 24-Volt. For the best results use Armacost Lighting LED lights, switches and dimming light controls. Plug-in or hardwire with detachable AC power cord. Suitable for both dry and damp locations. Includes: one 60-Watt, 24-Volt Power Supply, 1 Detachable AC Power Cord.
Highlights
- Provides smooth, full range flicker-free dimming for 24-Volt LED lighting such as LED strips, modules, light bars, puck and other LED accent lights
- No minimum lighting load required for wide range dimming and no de-rating is required

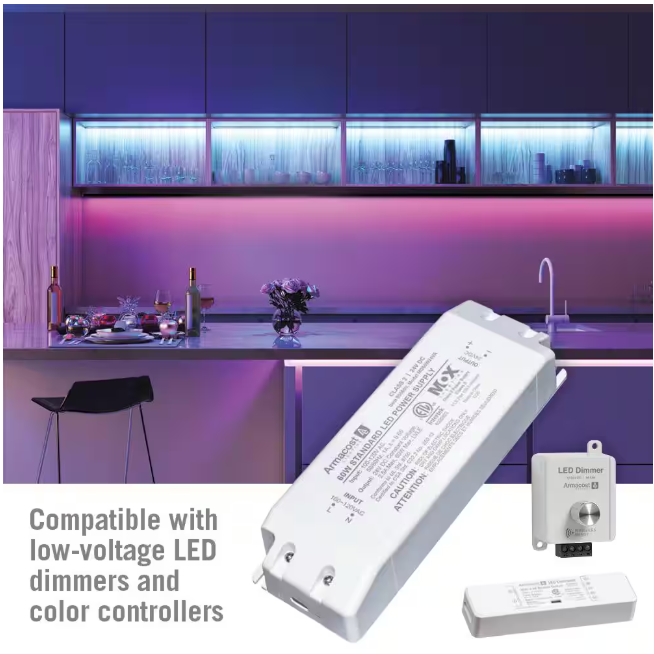

- Compatible with both 120 Volt AC dimmers and lighting controls and low-voltage DC dimmers and controls, including RGB color controllers
- Load up to 100% of the model's 60-Watt rated capacity
- Input voltage: 100-Volt to 120-Volt AC 50/60 Hz, =0. 65C, output voltage: 24-Volt DC constant voltage, 60-Watt, 2 Amp maximum
- Class 2 power supply features overload protection, automatic shut-off
- For optimal AC dimming performance, use a forward phase CL-style or equivalent dimmer, the use of reverse phase or ELV may degrade dimming performance
- ETL listed for dry or damp locations

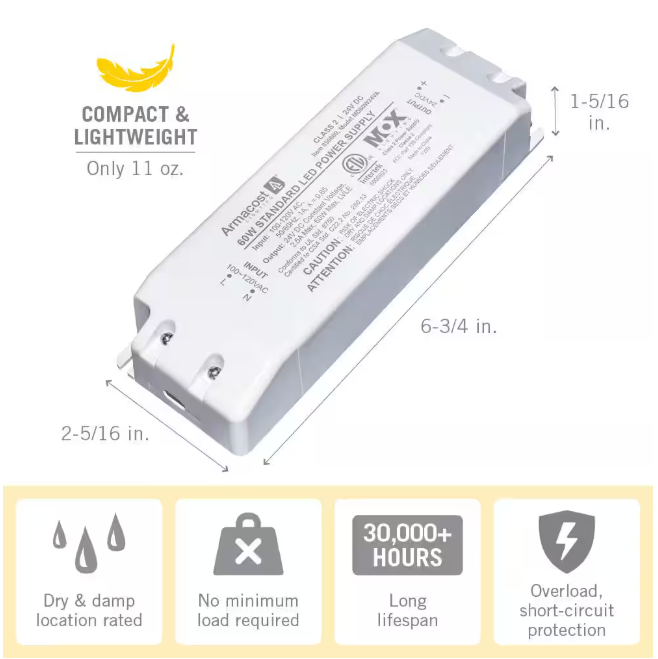

Dimensions
|
Product Height (in.) |
1 in |
|---|---|
|
Product Length (in.) |
7.25 in |
|
Product Width (in.) |
2 in |
Details
|
Dimmable |
Yes |
|---|---|
|
Driver Type |
Constant Voltage |
|
Input Current |
2 amps |
|
Input Volts |
120 |
|
Number in Pack |
1 |
|
Output Current |
2.5 amps |
|
Product Weight (lb.) |
0.7 lb |
|
Returnable |
30-Day |
|
Voltage Output (volts) |
24 V |
|
Wattage (W) |
60 W |
