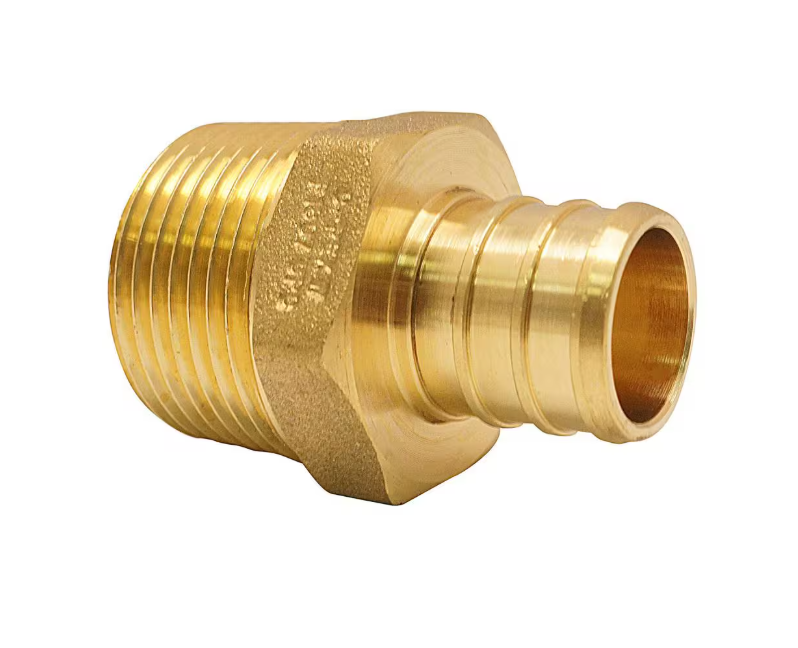

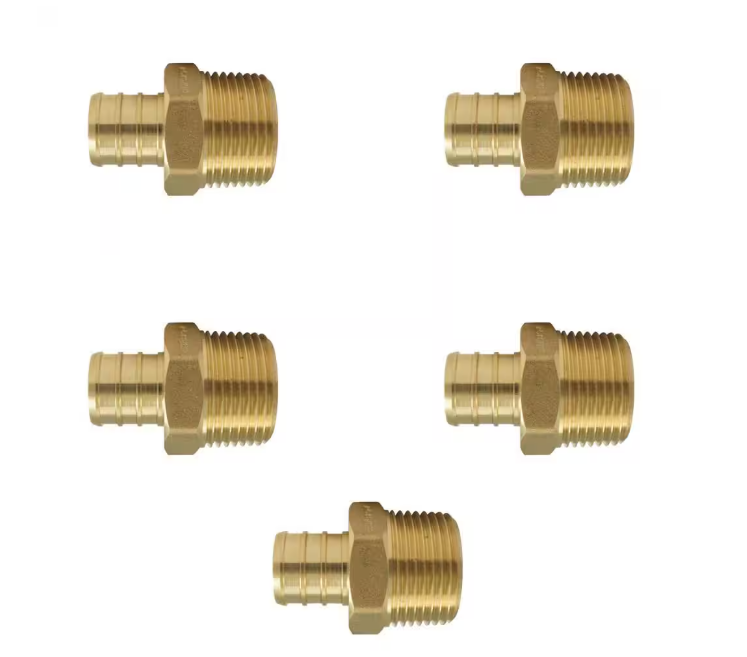

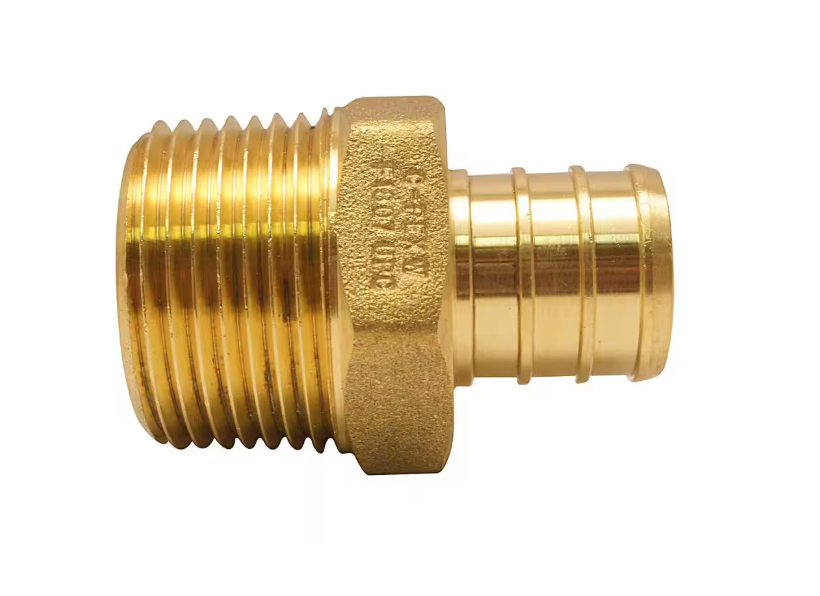

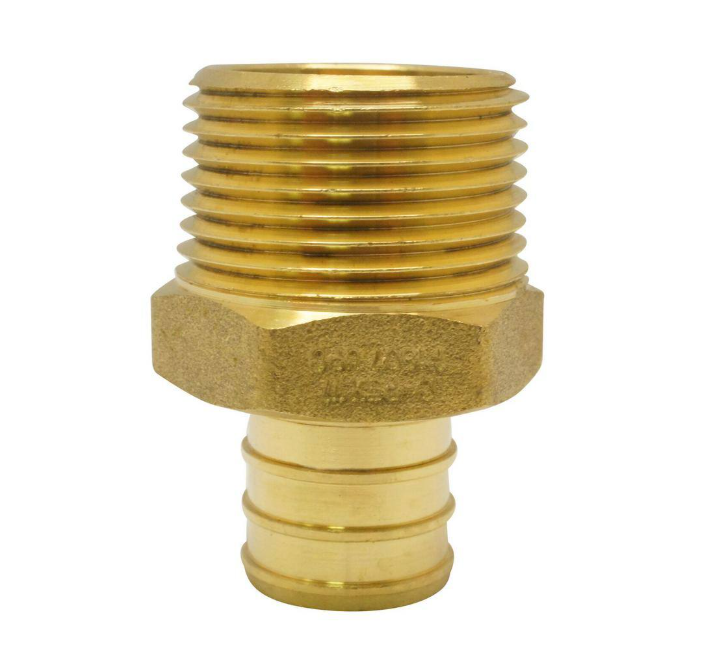

Apollo 3/4 in. Brass PEX-B Barb x 3/4 in. Male Pipe Thread Adapter (5-Pack)
Apollo 3/4 in. Brass PEX-B Barb x 3/4 in. Male Pipe Thread Adapter (5-Pack)
Couldn't load pickup availability
About This Product
The ApolloPEX 3/4 in. Brass PEX Barb x 3/4 in. Male Pipe Thread Adapter is simple to install. ApolloPEX barb fittings are a key component of the most economical potable water piping systems. Also capable of integration into hydronic heating systems, ApolloPEX adapters can be secured into place using copper crimps, stainless steel pinch clamps or stainless steel crimp sleeves (all sold separately). The ApolloPEX system is a comprehensive piping system comprised of brass fittings, poly alloy fittings, manifolds, valves, fasteners, tools and tubing designed for implementation in water delivery systems, simple or complex.
Highlights
- Most economical piping system available
- Meets UPC, IPC and cUPC standard
- Can secured in place using copper crimps, stainless steel pinch clamps or stainless steel crimp sleeves
- NSF listed
- Barb x MIP connection for PEX plumbing systems
- Maximum working pressure of 200 psi and maximum temperature of 200 degree F

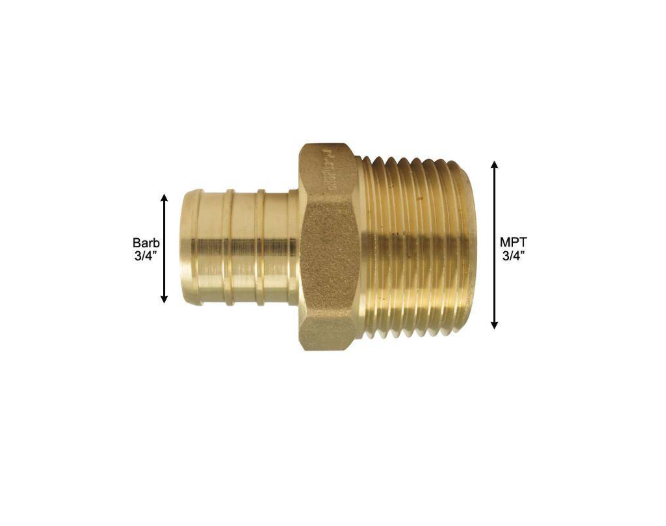

Dimensions
|
Double Fitting Size |
3/4" x 3/4" |
|---|---|
|
Fitting 1 size |
3/4" |
|
Fitting 2 size |
3/4" |
|
Fitting Size Dimensions |
3/4" x 3/4" |
|
Product Length (in.) |
1.5 in |
|
Single Fitting Size |
3/4" |
Details
|
Application |
Potable Water |
|---|---|
|
Color Family |
Brass |
|
Color/Finish |
Brass |
|
Compatible Pipe Material |
PEX |
|
Connection 1 |
Barb |
|
Connection 2 |
MPT |
|
Connectivity |
Barb |
|
Features |
Corrosion Resistant, Lead Free, Removable |
|
Fitting or Connector Type |
Adapter |
|
Fitting/ Connector Collection |
PEX |
|
Material |
Brass |
|
Maximum working pressure (psi) |
200 |
|
Maximum Working Temperature (F) |
200 |
|
Pack Size |
5 |
|
PEX Fitting Type |
Crimp |
|
PEX Type |
B |
|
Pipe or Fitting Product Type |
Fittings & Connectors |
|
Product Weight (lb.) |
0.113 lb |
|
Reducing Fitting |
No |
|
Returnable |
30-Day |
