GE 7-Day Programmable Indoor/Outdoor In-Wall Digital Timer
GE 7-Day Programmable Indoor/Outdoor In-Wall Digital Timer
Save energy, save money and feel secure by replacing a standard wall switch with this easy-to-program in-wall SunSmart digital timer by GE. This timer will automatically turn on and off lights or appliances that might otherwise be left on for extended periods saving both energy and money It not only works with traditional incandescent lights, but also with newer energy efficient technologies like CFL and LED lights. With built-in SunSmart technology, this timer is great for automating outdoor or indoor lights for greater security or simply to welcome you home at the end of the day. SunSmart technology will even automatically adjust when it is daylight savings time so you dont have to reprogram anything Set one multiple ON/OFF settings each day of the week up to 7 individual weekly programs. Random Security feature randomly varies ON/OFF times within an hour of the programmed time to create a lived in look, all with the push of a button. Timer will fit in most single or multi0gang rocker plates (wall plate not included) and can be used in single pole and/or 3-way installations. Timer is easy to install direct wire and REQUIRES A NEUTRAL WIRE. Electrical Ratings: 120VAC 60 Hz 15A Resistive 10A Tungsten 10A Ballast, 1 / 2 HP Motor.
Highlights
- Replace a standard wall switch with this easy to program GE SunSmart digital timer, set one or multiple on/off settings for your lights or appliances each day of the week up to 7 individual weekly programs, timer door also doubles as a convenient on/off push-button (overrides timer)
- SunSmart technology auto adjusts to sunset/sunrise times throughout the year and auto adjusts to daylight saving time changes, compatible with Incandescent, CFL and LED lights, also features a vacation security setting to help deter crime while you are away from home
- Easy to read backlit LCD display lights when button is pushed and automatically shuts off after 30 seconds, backup battery maintains your settings in the event of a power outage

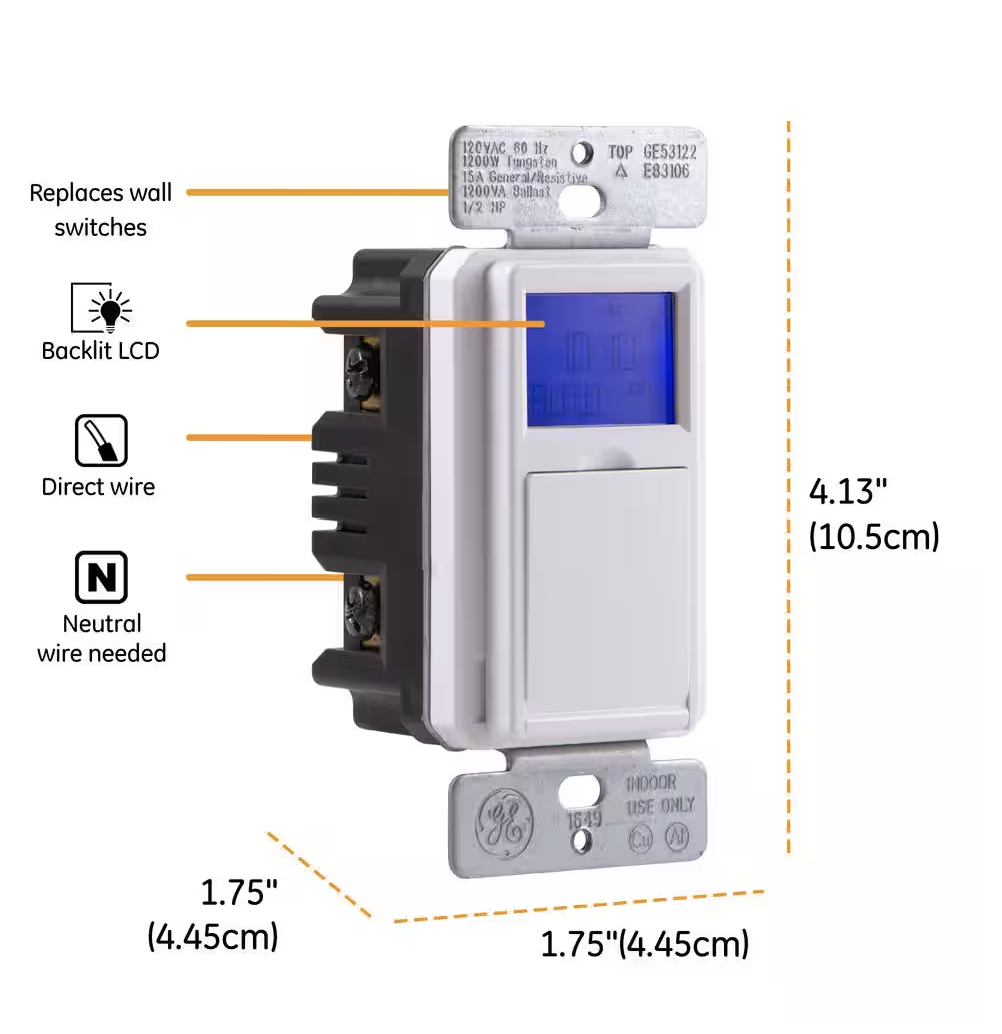

- Fits in a single or multi-gang rocker plate (wall plate not included), includes white and light almond faceplates

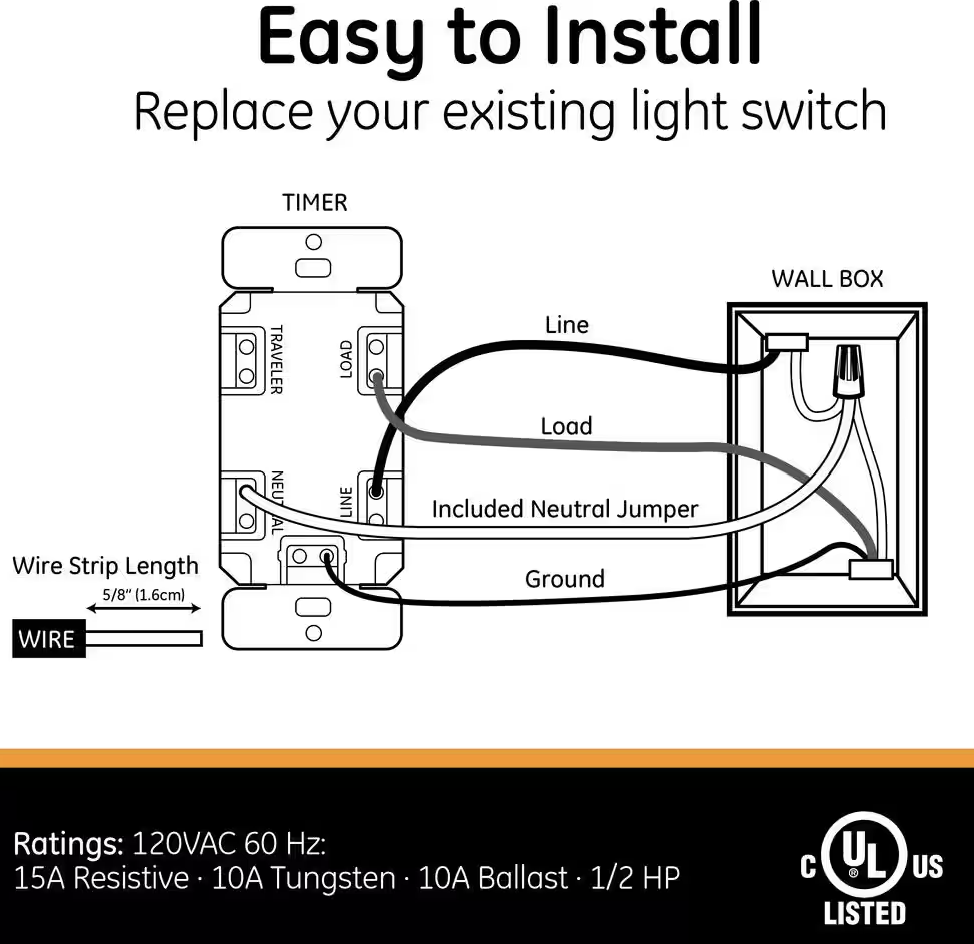

- Easy to install direct wire single pole and/or 3-way installation neutral wire required, electrical ratings: 120VAC 60 Hz, 15 Amp resistive, 10 Amp tungsten, 10 Amp Ballast, 1/2 HP motor
Details
Amperage (A) |
15 A |
Color Family |
White |
---|---|---|---|
Color/Finish |
white |
Commercial/Residential |
Residential |
Compatible Bulb Type |
CFL, Halogen, Incandescent, LED |
Device Style Type |
Timer w/o Wall Plate |
Dial/Digital |
Digital |
Durability |
Not Applicable |
Electrical Features |
Programmable |
Function Type |
Single Pole |
Included |
Mounting Hardware |
Indoor/Outdoor |
Indoor |
Material |
Thermoplastic |
Maximum Amperage (A) |
15 A |
Maximum Time Setting (Min.) |
0 |
Mounting Type |
In-Wall |
Number of Poles |
1 |
Package Quantity |
1 |
Rating |
General Purpose |
Returnable |
90-Day |
Switch Depth (in.) |
1 in |
Switch Height (in.) |
1.5 in |
Switch Style |
Rocker |
Switch Width (in.) |
2 in |
Timer Type |
Astronomic, Chronologic |
Voltage |
120 volt |
Voltage (V) |
120 V |
Wattage (W) |
0 W |
