(6 Pack)HALO H5 5 in. Aluminum Recessed Lighting Housing for Remodel Ceiling, Insulation Contact, Air-Tite
(6 Pack)HALO H5 5 in. Aluminum Recessed Lighting Housing for Remodel Ceiling, Insulation Contact, Air-Tite
Couldn't load pickup availability
About This Product

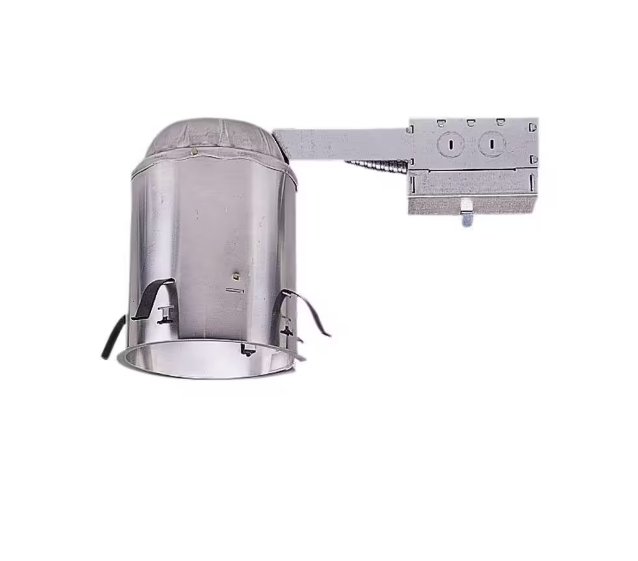

(6-Pack) The Air-Tite Halo 5 in. Recessed Can Remodel Housing features an Air-Tite design to prevent airflow between the attic and living areas in your home. This remodel housing can be covered by insulation and is compatible with Halo trims. Available in a contemporary 5 in. aperture.
Highlights
- Can be installed from below the ceiling in home remodel applications, ideal for those who have limited or no access to their ceiling
- Air-Tite rated design meets restricted air flow code requirements which prevents airflow between attic and living areas and saves on both heating and air conditioning costs
- Has four remodel clips which secure the recessed housing and accommodates 1/2 in. and 5/8 in. ceiling material
- Compatible with a wide variety of 5 in. recessed light trims but is best with Halo 5071, 5070, 5054, 5051, 5021, 5020, 5016, 5001, 5000 series models
- Compatible with a wide variety of 5 in. LED retrofit trims but is best with Halo quality RL, RA, SLD, LT, SMD and ML series models (Bulb free with some having a 45 year LED lifespan)
- 3 "Quick Connect" connectors eliminate the need for separate wire nuts - simply strip supply wires and push in
- Insulation contact rated: designed for insulated ceilings where contact is necessary
- Listed for damp location when used with dedicated wet rated recessed ceiling lights
- Designed to accommodate smaller sized PAR20 and PAR30 halogen lamps
- Durable gasketed die-stamped 20 gauge aluminum housing

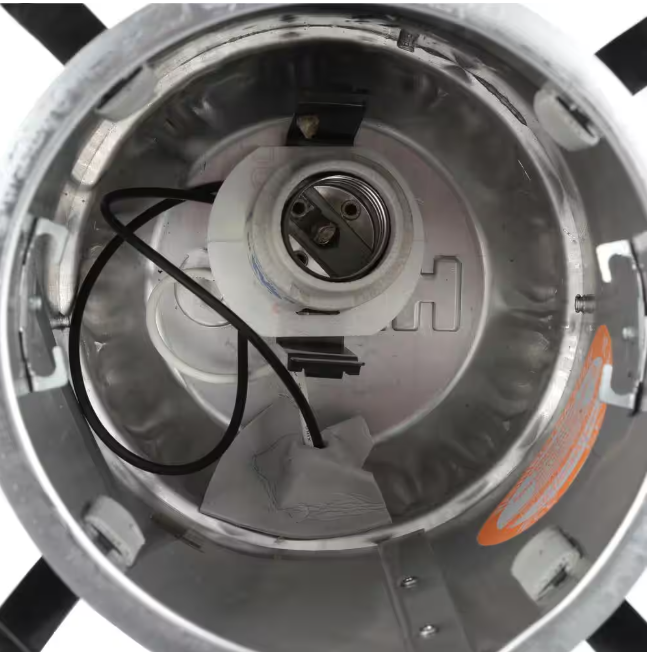

- Porcelain socket with nickel plated brass screw shell snaps into trim for consistent lamp positioning
- Features an integral thermal protector to guard against misuse of insulation materials and improper lamping

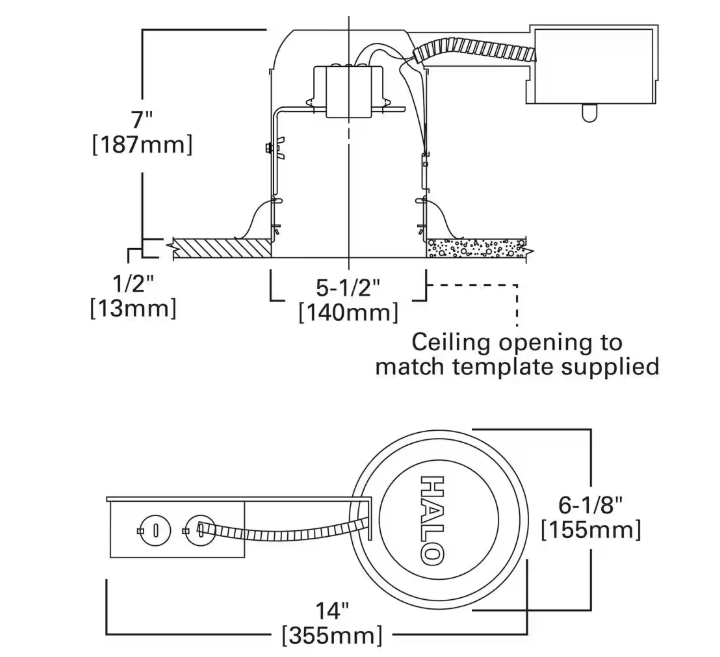

Dimensions
Nominal Size (in.) |
5 in |
---|---|
Product Height (in.) |
7.5 in |
Product Width (in.) |
5.5 in |
Details
Color/Finish Family |
Gray |
---|---|
Compatible Bulb Type |
CFL, LED |
Damp/Wet Rating |
Damp Rated, Wet Rated |
Features |
No Additional Features |
IC Rating |
IC Rated |
Included |
Mounting Brackets |
Indoor/Outdoor |
Indoor, Outdoor |
Light Bulb Base Code |
No Base |
Material |
Aluminum |
Maximum Bulb Wattage (W) |
75 W |
New Construction or Remodel |
New Construction |
Pack Size |
6 |
Product Weight (lb.) |
1.4 lb |
Returnable |
30-Day |
Voltage (V) |
120 V |
