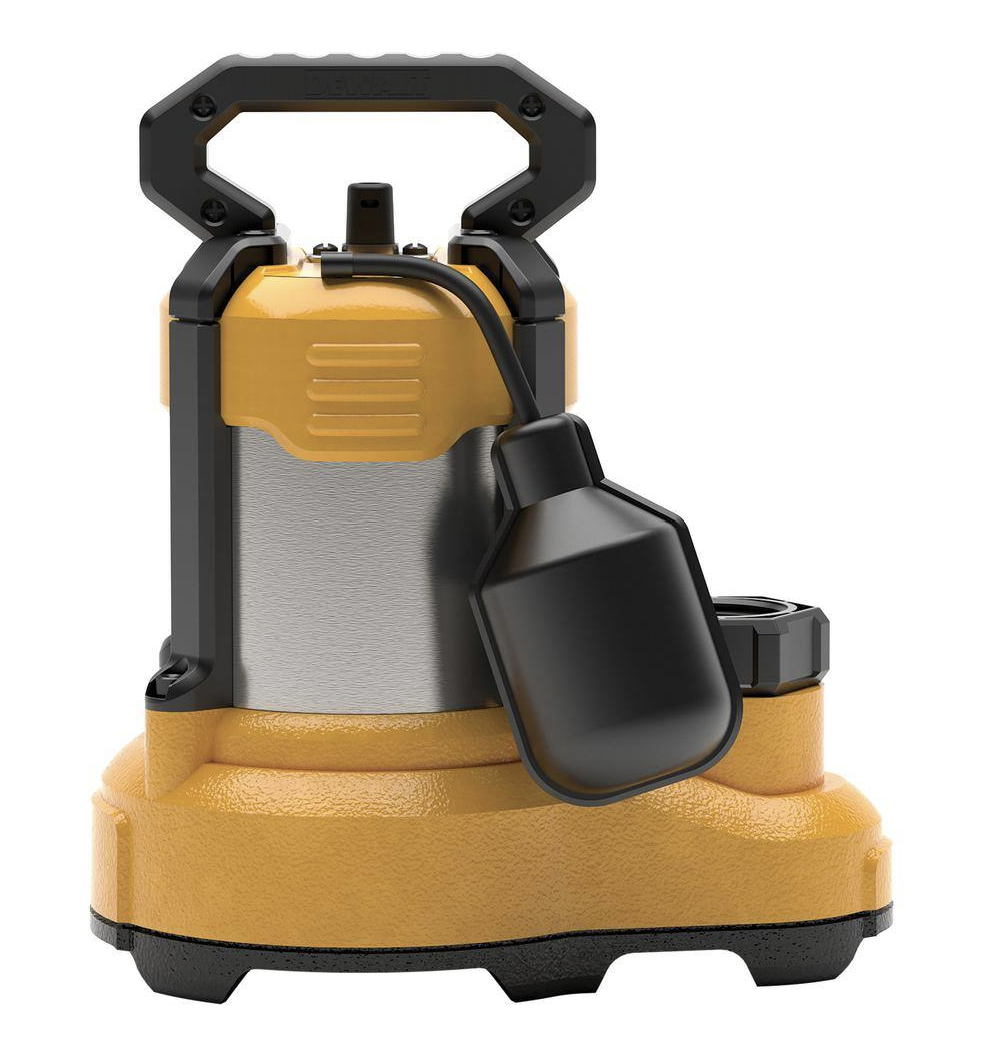

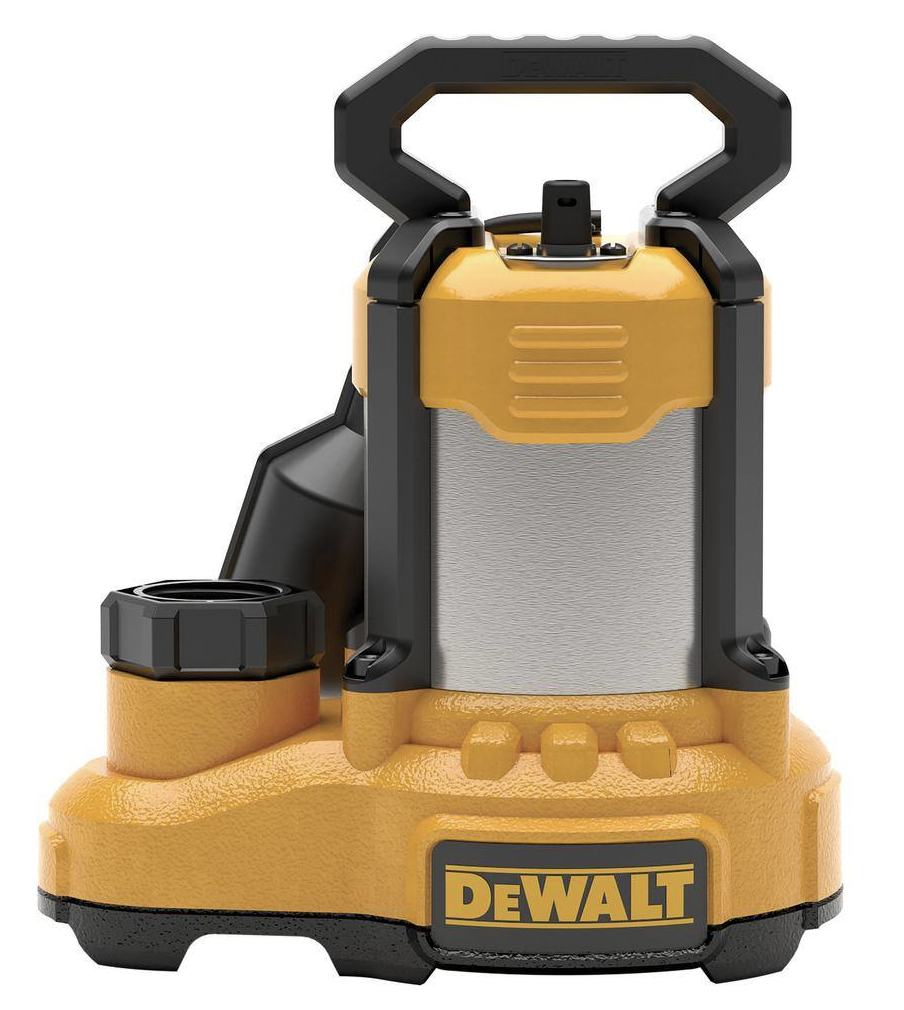

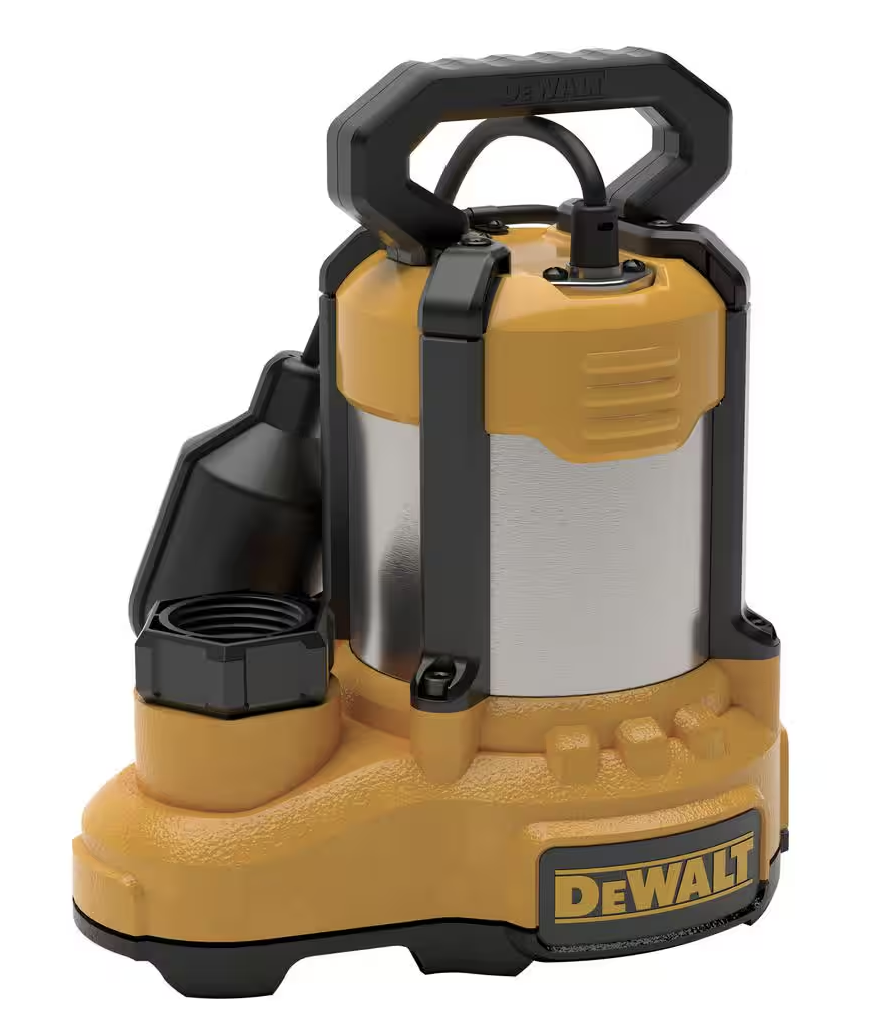

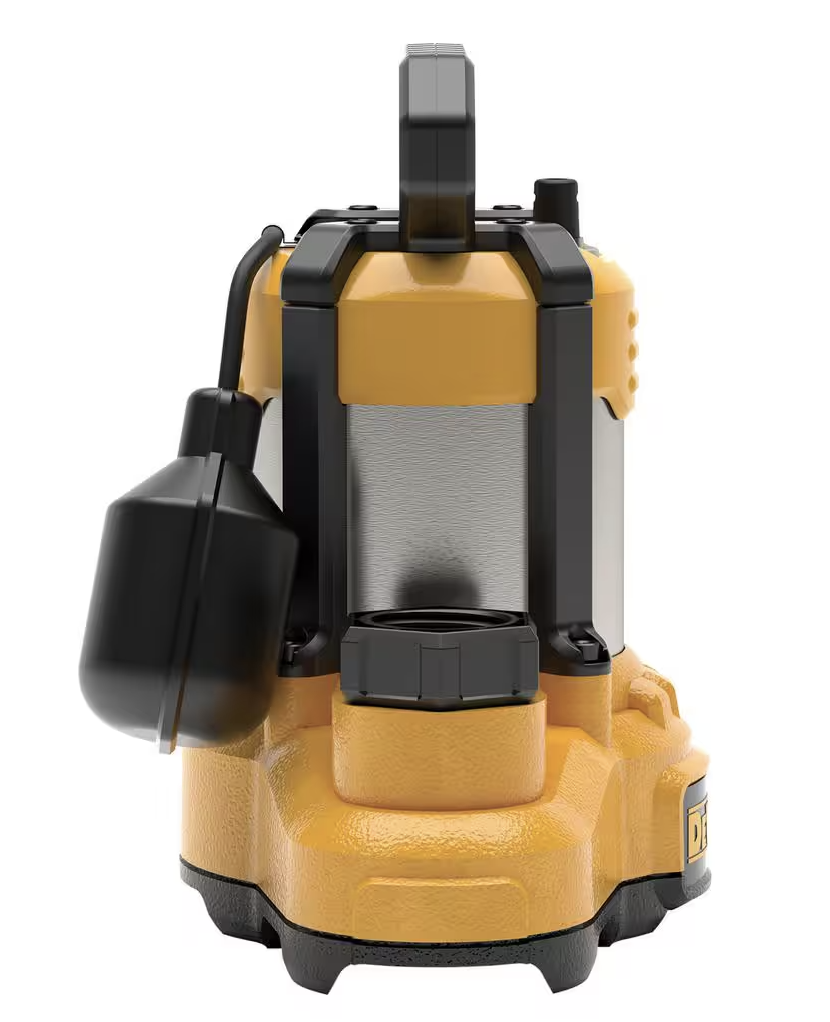

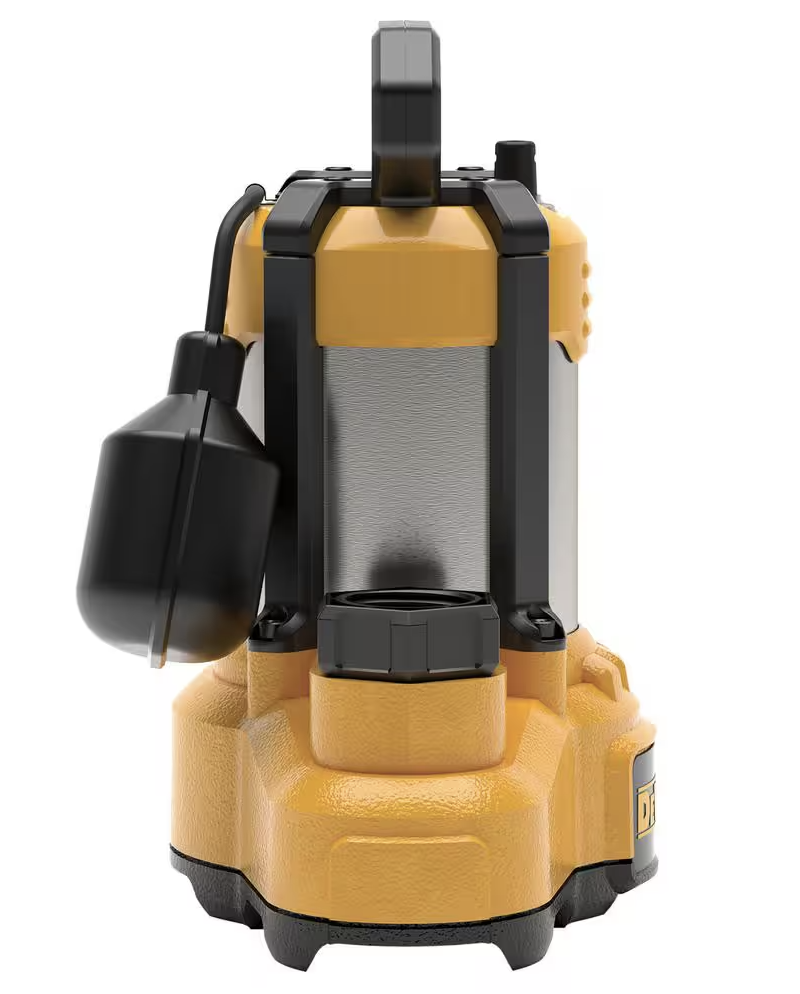

1/3 HP. Stainless Steel/Cast Iron Submersible Sump Pump, Tethered Switch
1/3 HP. Stainless Steel/Cast Iron Submersible Sump Pump, Tethered Switch
DEWALT Submersible Sump Pumps are GUARANTEED TOUGH to meet and exceed the expectations of experienced trade professionals and homeowners alike. This heavy-duty 1/3 HP sump pump will dependably remove water away from the home's sump basin. DEWALT Sump Pumps are built with the highest quality components including a durable cast iron base, corrosion-resistant stainless steel motor housing, 100% copper motor windings for a long-lasting motor, and a piggy-back vertical float switch tested to over 3 million on/off cycles. DEWALT Sump Pumps feature a 2 in. FPT discharge with a 1-1/2 in. discharge adapter included. The 1/3 HP DEWALT Sump Pump pumps up to 75 Gal. per minute / 4500 Gal. per hour and up to a maximum vertical lift of 25 ft. DEWALT Pumps are 100% factory-tested and backed by a 10-year warranty.
Highlights
- Pumps up to 75 GPM / 4500 GPH and up to a maximum vertical lift of 25 ft.
- Cast iron and stainless steel construction provide ultimate durability and longevity

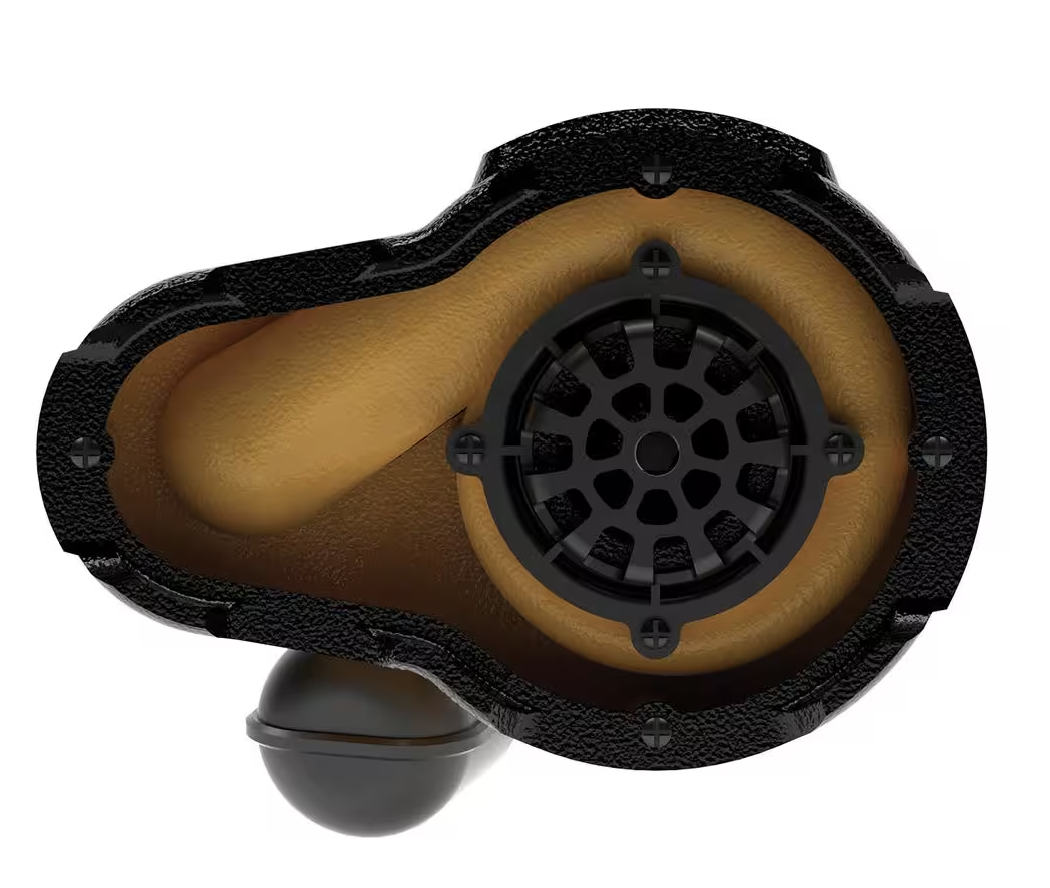

- Rugged cast iron impeller prevents clogging and will handle up to 1/ 2 in. solids
- Tethered float switch with piggy-back plug
- 2 in. FPT discharge with 1-1/2 in FPT adapter included
- Rugged carrying handle and 10 ft. of power cord for quick and easy installation
- Thermally protected motor resists overheating and increases the life of the pump
- California residents see Prop 65 WARNINGS
Dimensions
|
Product Depth (in.) |
9.7 in |
Product Height (in.) |
12.9 in |
|---|---|---|---|
|
Product Width (in.) |
10.4 in |
Switch-Off Height (in.) |
2.5 |
|
Switch-On Height (in.) |
7 |
Details
|
Amperage (A) |
6.5 A |
Cord Length (ft.) |
10 ft |
|---|---|---|---|
|
Discharge Flow @ 0 ft. (gallons/hour) |
4500 |
Discharge Flow @ 0 ft. (gallons/min) |
75 |
|
Discharge Flow @ 10 ft. (gallons/hour) |
3800 |
Discharge Flow @ 10 ft. (gallons/min) |
63 |
|
Discharge Flow @ 15 ft. (gallons/min) |
56 |
Features |
Bottom/End Suction, Corrosion Resistant, Solids Handling, Thermal Overload Protection |
|
Housing Material |
Stainless steel |
Impeller Material |
Cast Iron |
|
Maximum Horsepower (hp) |
1/3 |
Maximum Pressure (PSI) |
10.8 PSI |
|
Maximum Working Temperature (F) |
120 |
Minimum Sump Basin Diameter |
11 to 14 |
|
Minimum working temperature (F) |
33 |
Outlet Diameter Connection (in.) |
1-1/2 FPT |
|
Pack Size |
1 |
Power Type Required |
AC |
|
Product Weight (lb.) |
24 lb |
Pump Switch Type |
Tethered |
|
Returnable |
30-Day |
Vertical Lift (ft.) |
25 |
|
Voltage |
120v |
