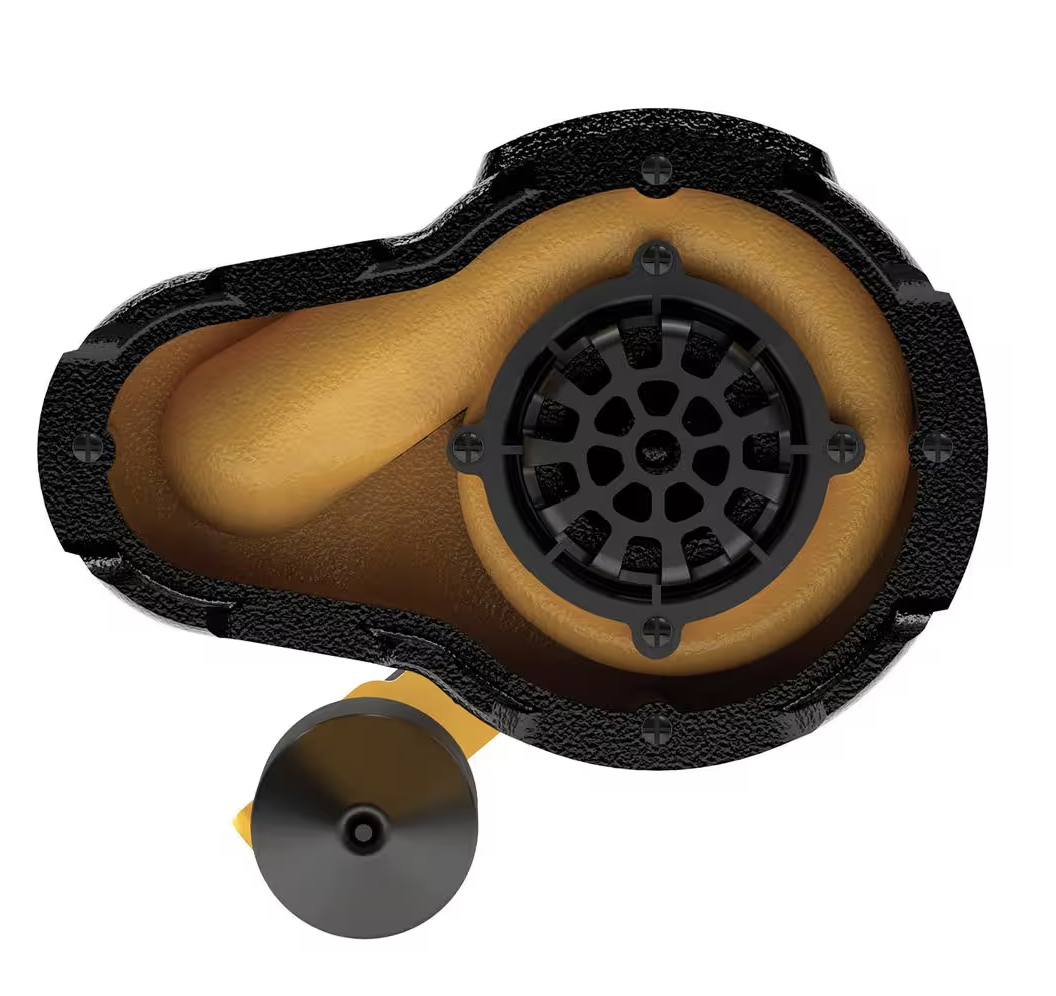

DEWALT 1/3 hp. Stainless Steel/Cast Iron Submersible Sump Pump
DEWALT 1/3 hp. Stainless Steel/Cast Iron Submersible Sump Pump
Couldn't load pickup availability
This item is missing the instruction manual.
DEWALT Submersible Sump Pumps are GUARANTEED TOUGH to meet and exceed the expectations of experienced trade professionals and homeowners alike. This heavy-duty 1/3 HP sump pump will dependably remove water away from the home's sump basin. DEWALT Sump Pumps are built with the highest quality components including a durable cast iron base, corrosion-resistant stainless steel motor housing, 100% copper motor windings for a long-lasting motor, and a piggy-back vertical float switch tested to over 3 million on/off cycles. DEWALT Sump Pumps feature a 2 in. FPT discharge with a 1-1/2 in. discharge adapter included. The 1/3 HP DEWALT Sump Pump pumps up to 75 gallons per minute / 4500 gallons per hour and up to a maximum vertical lift of 25 feet. DEWALT Pumps are 100% factory-tested and backed by a 10-year warranty.
Highlights
- Pumps up to 75 GPM / 4500 GPH and up to a maximum vertical lift of 25 ft.
- Cast iron and stainless steel construction provide ultimate durability and longevity
- Rugged cast iron impeller prevents clogging and will handle up to 1/ 2 in. solids
- Vertical float switch with piggy-back plug tested to over 3 million on/off cycles
- 2 in. FPT discharge with 1-1/2 in FPT adapter included
- Rugged carrying handle and 10 feet of power cord for quick and easy installation
- Thermally protected motor resists overheating and increases the life of the pump
Dimensions
|
Product Depth (in.) |
9.7 in |
Product Height (in.) |
12.9 |
|---|---|---|---|
|
Product Width (in.) |
10.4 in |
Switch-Off Height (in.) |
2.5 |
|
Switch-On Height (in.) |
7 |
Details
|
Amperage (A) |
6.5 A |
Cord Length (ft.) |
10 ft |
|---|---|---|---|
|
Discharge Flow @ 0 ft. (gallons/hour) |
4500 |
Discharge Flow @ 0 ft. (gallons/min) |
75 |
|
Discharge Flow @ 10 ft. (gallons/hour) |
3800 |
Discharge Flow @ 10 ft. (gallons/min) |
63 |
|
Discharge Flow @ 15 ft. (gallons/min) |
56 |
Features |
Bottom/End Suction, Corrosion Resistant, Solids Handling, Thermal Overload Protection |
|
Housing Material |
Stainless steel |
Impeller Material |
Cast Iron |
|
Maximum Horsepower (hp) |
1/3 |
Maximum Pressure (PSI) |
10.8 PSI |
|
Maximum Working Temperature (F) |
120 |
Minimum Sump Basin Diameter |
11 to 14 |
|
Minimum working temperature (F) |
33 |
Outlet Diameter Connection (in.) |
1-1/2 FPT |
|
Pack Size |
1 |
Power Type Required |
AC |
|
Product Weight (lb.) |
24 lb |
Pump Switch Type |
Vertical |
|
Returnable |
30-Day |
Vertical Lift (ft.) |
25 |
|
Voltage |
120v |
