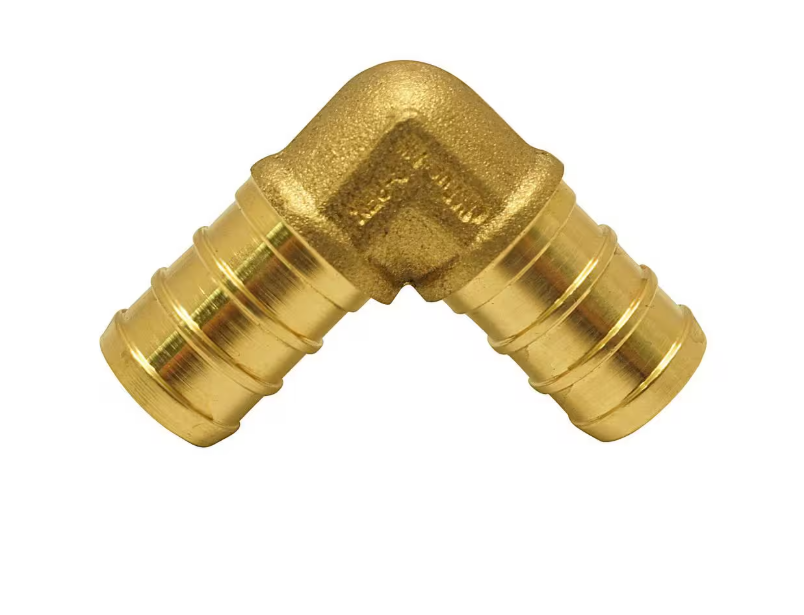

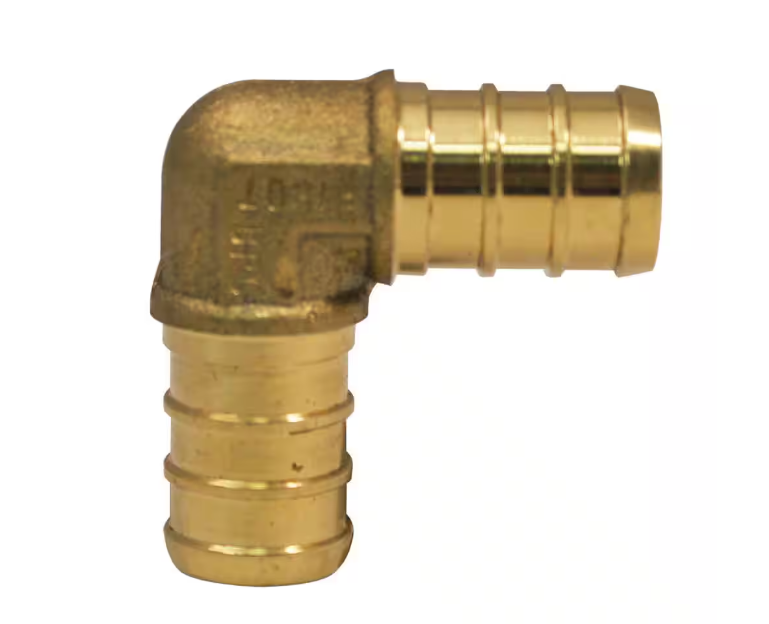

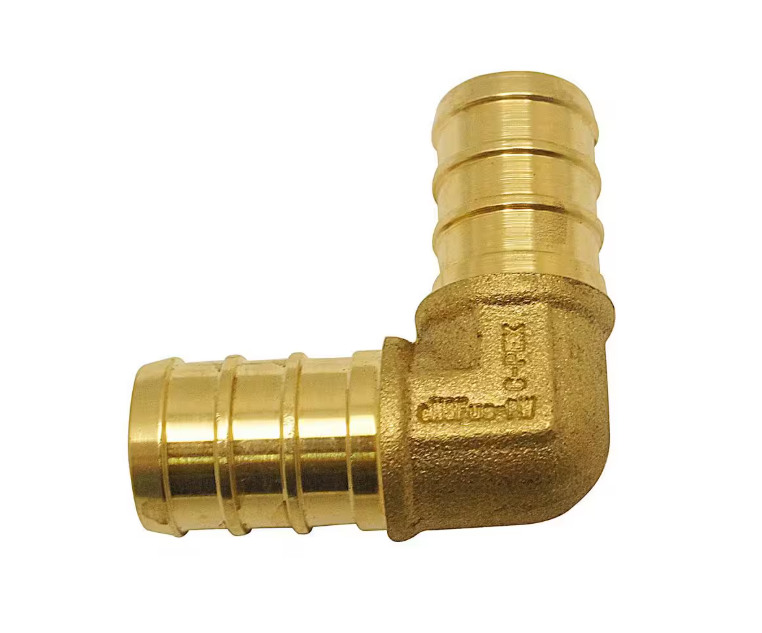

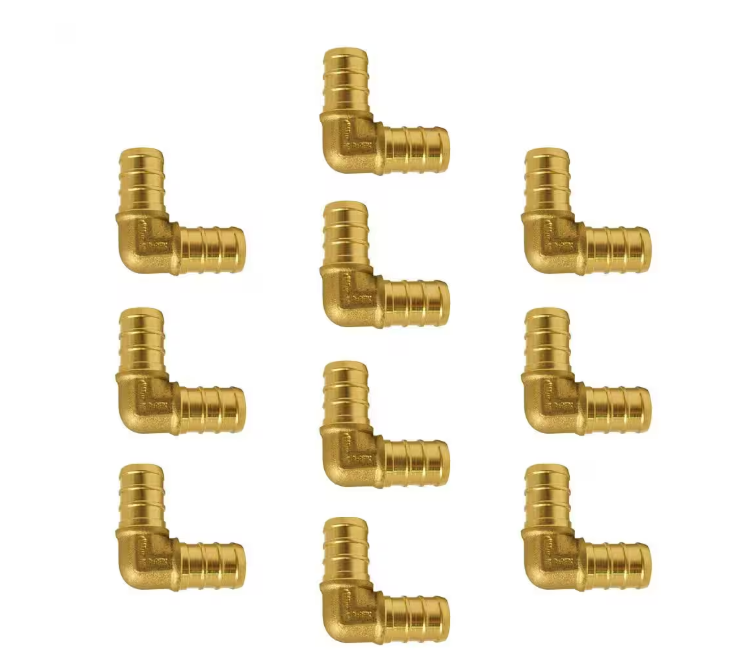

1/2 in. Brass PEX-B Barb 90 Elbow (10-Pack)

The ApolloPEX 1/2 in. Brass PEX Barb 90 Elbow (10-Pack) is simple to install. ApolloPEX barb fittings are a key component of the most economical potable water piping systems. Also capable of integration into hydronic heating systems, ApolloPEX elbows can be secured into place using copper crimps, stainless steel pinch clamps or stainless steel crimp sleeves (all sold separately). The ApolloPEX system is a comprehensive piping system comprised of brass fittings, poly alloy fittings, manifolds, valves, fasteners, tools and tubing designed for implementation in water delivery systems, simple or complex.

Highlights

Constructed of lead free dezincification resistant (DZR) brass for superior reliability and strength
Most economical piping system available
Compatible with PEX pipe
Meets UPC, IPC and cUPC standard
Can be secured in place using copper crimps, stainless steel pinch clamps or stainless steel crimp sleeves
NSF listed
Barb x barb connection for PEX plumbing systems
Rated to 200 degree F and 200 psi

Dimensions

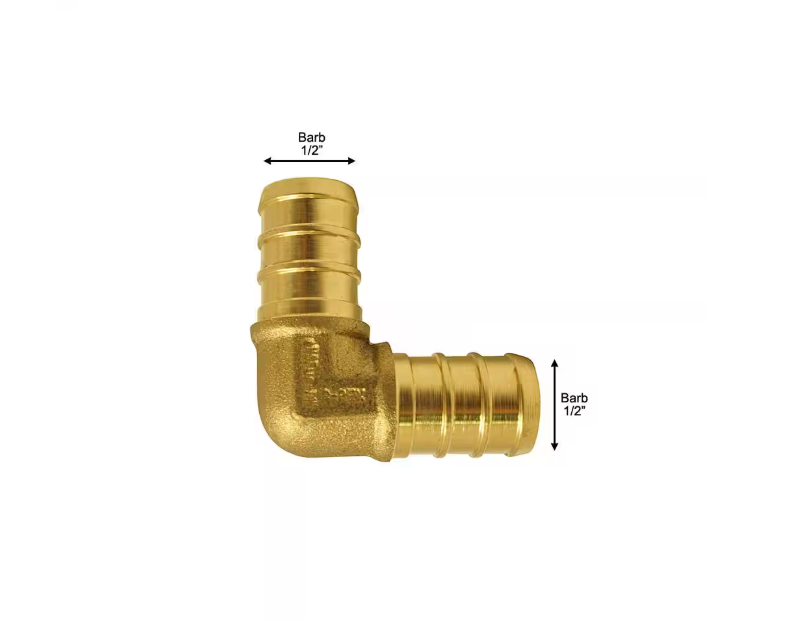

Double Fitting Size	1/2" x 1/2"	Fitting 1 size	1/2"
Fitting 2 size	1/2"	Fitting Size Dimensions	1/2" x 1/2"
Product Depth (in.)	0.4 in	Product Height (in.)	1.2 in
Product Width (in.)	1.2 in	Single Fitting Size	1/2"

Details

Application	Potable Water	Bend Degree	90 Degree
Color Family	Brass	Color/Finish	Brass
Compatible Pipe Material	PEX	Connection 1	Barb
Connection 2	Barb	Connectivity	Barb
Features	Corrosion Resistant, Lead Free, Removable	Fitting or Connector Type	Elbow
Fitting/ Connector Collection	PEX	Material	Brass
Maximum working pressure (psi)	200	Maximum Working Temperature (F)	200
Pack Size	10	PEX Fitting Type	Crimp
PEX Type	B	Pipe or Fitting Product Type	Fittings & Connectors
Product Weight (lb.)	.04 lb	Reducing Fitting	No
Returnable	30-Day

$14.27 USD
